Maxim Integrated DS1973-F5 iButton 4kb EEPROM

The Maxim Integrated DS1973-F5 iButton is a robust, self-contained system that carries nonvolatile memory and communicates with the outside world through a simple serial interface. As part of the iButton family, it utilizes Maxim's exclusive 1-Wire® protocol to facilitate communication between smart electronic devices with minimal wiring. The DS1973-F5 model features a 4kb EEPROM, offering a compact and secure way to store data.

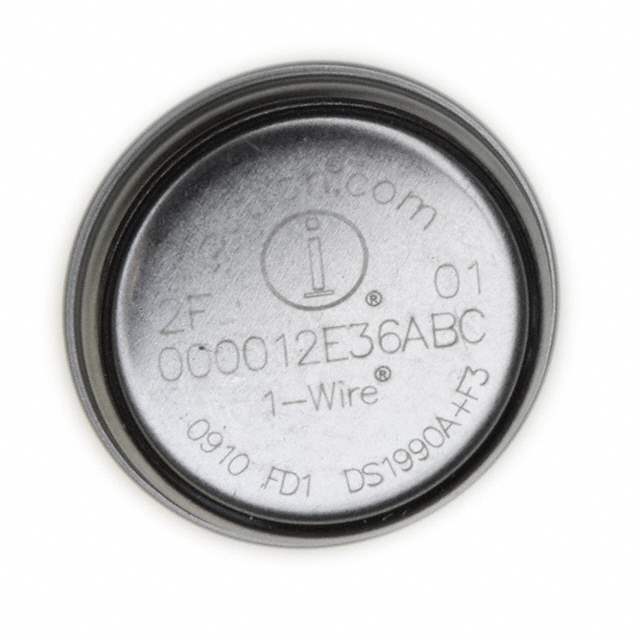

This particular iButton device is encased in a durable stainless steel can, ensuring protection against harsh environments and making it suitable for a wide range of applications, from access control to asset tracking. The steel can provides a rugged housing that resists damage from environmental hazards such as dirt, moisture, and shock, making it an ideal solution for use in challenging conditions.

The DS1973-F5's 4kb of EEPROM is partitioned into 16 pages of 256 bits, each with a 32-bit scratchpad to ensure data integrity during transfer. It also features a unique, factory-lasered and tested 64-bit registration number that guarantees a unique identity for absolute traceability. This unique ID allows for multiple iButtons to be used in a system without the risk of ID conflict.

Powered by the 1-Wire protocol, the DS1973-F5 can derive power directly from the data line ("parasite power"), eliminating the need for an external power source. This simplifies integration and reduces the overall system cost and complexity. The device supports an operating temperature range from -40°C to +85°C, making it reliable for use in extreme conditions.

Applications for the DS1973-F5 iButton include but are not limited to work-in-progress tracking, tool management, inventory control, and electronic cash transactions. Its small form factor, combined with its rugged design, makes it an excellent choice for any application that requires a portable, durable, and easy-to-use data storage device.

Overall, the Maxim Integrated DS1973-F5 iButton is a versatile and secure solution for data storage and transfer needs in a variety of industrial and commercial environments.
