The MAX1195ECM is a state-of-the-art analog-to-digital converter (ADC) designed by Maxim Integrated, renowned for its high-speed performance and low power consumption. This ADC is particularly suitable for applications that require fast data acquisition without sacrificing energy efficiency, making it an ideal choice for portable and battery-powered devices, as well as for high-speed signal processing tasks.

Key Features

• Resolution: The MAX1195ECM boasts a 10-bit resolution, offering fine granularity for precision measurements.
• Sampling Rate: With a maximum sampling rate of 200Msps (mega samples per second), this ADC is capable of capturing high-frequency signals with ease.
• Dual-Channel: It features a dual-channel configuration, allowing simultaneous sampling of two analog inputs, which is perfect for I/Q demodulation schemes and other applications that need matched pair channels.
• Low Power Consumption: The device operates with a low power consumption of just 90mW at the full 200Msps rate, which is exceptional for its performance level.
• Serial Output Interface: The MAX1195ECM utilizes a high-speed serial interface for data output, minimizing the number of I/O lines required and simplifying PCB layout.
• Internal Voltage Reference: An integrated voltage reference simplifies the design by reducing the need for external components.

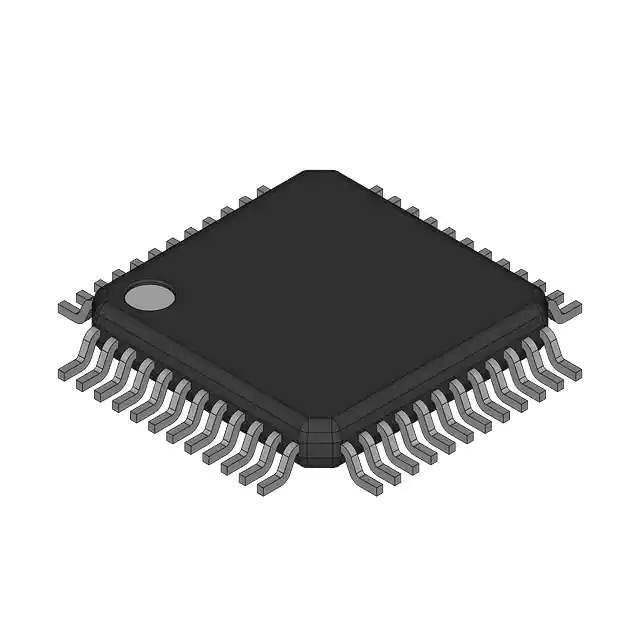

• Small Package: The ADC comes in a compact 48-pin LQFP (Low-Profile Quad Flat Package), which is conducive to space-constrained applications.

Applications

The MAX1195ECM is well-suited for a wide range of applications, including:

• Wireless and Wired Communications
• Imaging Systems
• Radar and Satellite Systems
• Instrumentation and Test Equipment
• Medical Imaging Devices

With its combination of high-speed performance, dual-channel operation, and low power consumption, the MAX1195ECM from Maxim Integrated is a versatile ADC that addresses the needs of modern high-performance electronic systems.
