The MAX13204EALT+T from Maxim Integrated is a high-performance, low-power, dual-channel digital isolator designed to provide reliable signal isolation for a wide range of applications. This component is a perfect solution for systems where signal integrity and isolation are critical, such as industrial automation, medical equipment, and power supply units.

Key Features

• Isolation Voltage: The device offers an impressive isolation voltage of 3.75kVrms (minimum) for 60 seconds, ensuring safety and compliance with industry standards.
• Data Rate: It supports a high-speed data rate of up to 25Mbps, making it suitable for applications that require fast data transfer without compromising signal quality.
• Low Power Consumption: The MAX13204EALT+T is designed for energy efficiency, with a low quiescent current that helps to minimize power consumption in your system.
• Integrated DC-DC Converter: The inclusion of an integrated DC-DC converter simplifies power supply design by providing isolated power along with signal isolation.
• Robustness: With its high common-mode transient immunity of 50kV/μs, the device ensures stable performance in environments with high levels of electrical noise.

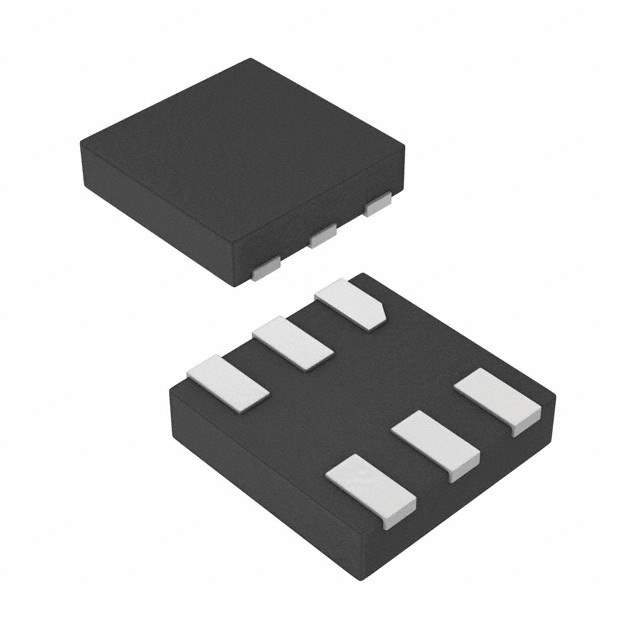

• Package: The component is available in a compact, surface-mountable TDFN package, making it ideal for space-constrained applications.

Applications

The MAX13204EALT+T is versatile and can be used in a variety of applications, some of which include:

• Industrial Control Systems
• Medical Systems
• Isolated Sensor Interfaces
• Data Acquisition Systems
• Power Supply Control

Conclusion

In conclusion, the MAX13204EALT+T from Maxim Integrated is a robust, efficient, and reliable digital isolator that offers excellent performance for applications requiring high-quality signal isolation. Its combination of high-speed data transfer, low power consumption, and compact form factor make it an ideal choice for designers looking to enhance their system's safety and integrity.
