Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Maxim Integrated
Main Purpose Power Management, Motor Control
Utilized IC / Part MAX14870
Primary Attributes Single-H-Bridge Driver
Secondary Attributes Graphical User Interface
Supplied Contents Board(s)
Win Source Part Number 785371-MAX14870EVKIT#
Popularity Medium
Supply and Demand Status Limited
Family Name MAX14870
Introduction Date June 30, 2015
ECCN EAR99
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian MAX14870EVKIT# CAD Model

Description

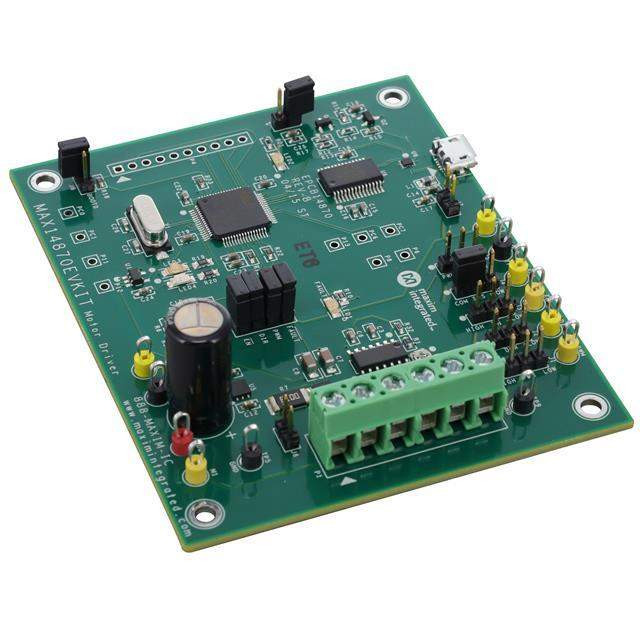

The MAX14870EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX14870 motor driver. This compact, high-performance solution is ideal for designers and hobbyists looking to test the functionalities of the MAX14870 single brushed DC motor driver IC, which is known for its low power consumption and efficient operation.

Key Features

  • Versatile Voltage Range: The kit operates over a wide range of voltages, from 4.5V to 36V, making it suitable for a variety of DC motor applications.
  • High Output Current: It can deliver up to 2.5A of continuous current, with peak currents up to 5A, providing robust drive capability for a broad spectrum of motor sizes.
  • Efficient Design: The MAX14870 motor driver incorporates a low-power sleep mode and ultrasonic PWM to maximize efficiency, reduce noise, and prolong battery life in portable applications.
  • Protection Features: The board includes multiple protection features such as overcurrent protection, thermal shutdown, and undervoltage lockout, ensuring reliable operation under adverse conditions.

Easy to Use

The evaluation kit comes with an easy-to-use interface that requires minimal external components. It includes convenient screw terminals for motor and power connections, as well as test points for critical signals, which simplifies both setup and testing.

Flexible Control Options

With the MAX14870EVKIT#, users have the flexibility to control the motor driver using an external controller or test equipment. The on-board jumper settings allow for quick configuration changes and experimentation with different operating modes, such as direction control and PWM speed control.

Comprehensive Documentation

Maxim Integrated provides extensive documentation for the MAX14870EVKIT#, including a detailed user guide, schematics, and application notes. This wealth of resources ensures that users can get the most out of their evaluation experience and accelerates the development of their own motor control applications.

Applications

The MAX14870EVKIT# is suitable for a wide range of applications, including but not limited to robotics, industrial control systems, and consumer electronics where precise DC motor control is essential.
