MAX1584ETJ+ High-Efficiency, Compact, Step-Up DC-DC Converters

The MAX1584ETJ+ from Maxim Integrated is a cutting-edge, high-efficiency step-up DC-DC converter specifically designed to meet the demanding power requirements of modern portable devices. This compact, integrated circuit is ideal for applications requiring a small form factor without compromising performance, such as mobile phones, PDAs, digital cameras, and other handheld devices.

The MAX1584ETJ+ operates from a 2.6V to 5.5V input voltage range, making it versatile for use with single-cell lithium-ion (Li+) batteries or multi-cell alkaline/NiMH batteries. It delivers an adjustable output voltage from 2.5V to 5.5V, or a fixed 3.3V or 5V, which allows designers to tailor the output to suit the specific needs of their application.

One of the key features of this device is its high efficiency, which can reach up to 96%. This is achieved through an integrated synchronous rectifier and a 1.2MHz fixed-frequency PWM control scheme, minimizing power loss and extending battery life. The MAX1584ETJ+ also includes a low quiescent current of only 28µA, further conserving power when the device is in standby mode.

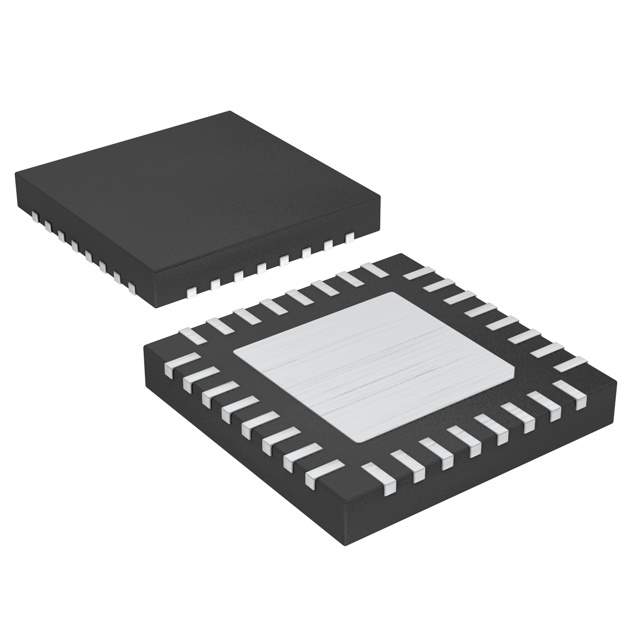

The device comes in a compact, 32-pin thin QFN (TQFN) package with an exposed pad, which aids in thermal management and allows for a smaller footprint on the PCB. The MAX1584ETJ+ also features internal soft-start to limit inrush current during startup, as well as a true shutdown mode that disconnects the load from the battery when not in use to prevent draining the battery.

For safety and protection, the MAX1584ETJ+ incorporates overvoltage protection, which guards the device and the load against unexpected surges in input voltage. Additionally, it has built-in thermal overload protection that shuts down the device to prevent overheating.

In summary, the MAX1584ETJ+ from Maxim Integrated is a highly efficient, versatile, and compact step-up DC-DC converter that offers a robust power solution for portable electronic devices, ensuring extended battery life, reliable operation, and a small PCB footprint.
