Maxim Integrated MAX17041G+U Fuel Gauge IC

The MAX17041G+U from Maxim Integrated is a compact, low-cost, low-power fuel gauge IC designed for lithium-ion batteries in handheld and portable devices. This innovative component utilizes the sophisticated ModelGauge™ algorithm to provide a reliable estimation of the remaining battery charge without the need for battery characterization or calibration. Its simplicity and accuracy make it an ideal choice for a wide range of consumer electronics, including smartphones, tablets, laptops, cameras, and portable gaming devices.

This fuel gauge operates over a wide 2.5V to 5.5V supply range, making it suitable for single-cell Li+ applications. The MAX17041G+U communicates via an I2C interface, allowing for easy integration into most system designs. It also features a QuickStart mode that provides an initial battery state-of-charge (SOC) estimation immediately upon power-up, getting devices up and running without delay.

One of the standout features of the MAX17041G+U is its ModelGauge algorithm, which eliminates the need for offset accumulation error in the coulomb counter, resulting in a more accurate SOC reading over the life of the battery. This technology simplifies system design by eliminating the need for external sense resistors and does not require battery relearn cycles.

The IC is also equipped with an Alert function, which notifies the host when the battery falls below a programmable threshold. This is particularly useful for protecting devices from unexpected shutdowns and for maintaining user experience by providing timely low-battery warnings.

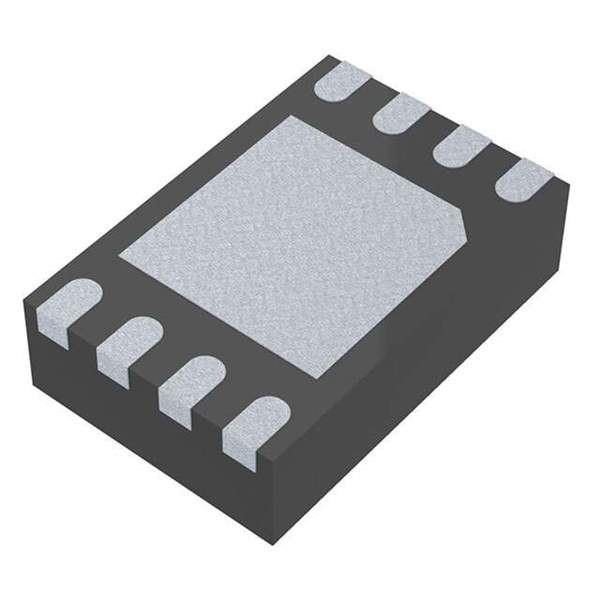

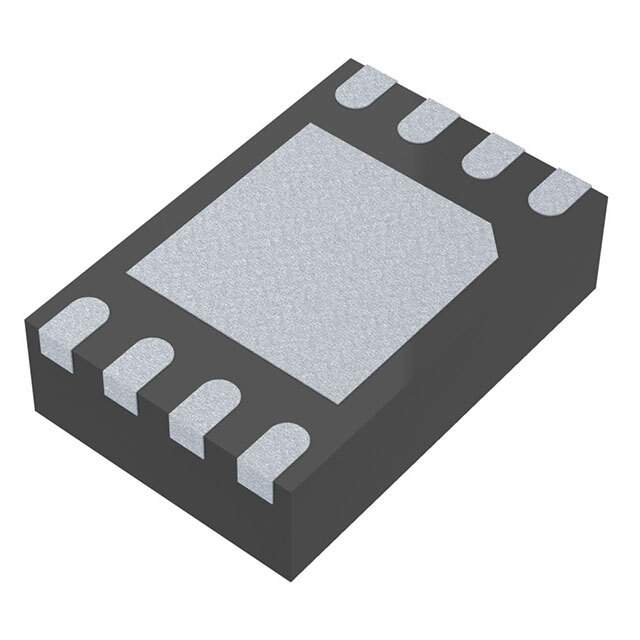

Maxim Integrated has packaged the MAX17041G+U in a tiny, lead-free 8-pin TDFN package with a footprint of just 2.5mm x 2.0mm, making it an excellent choice for space-constrained applications. Its small size and high level of integration help reduce the overall bill of materials and simplify the design process for engineers.

In summary, the MAX17041G+U is an advanced, easy-to-use fuel gauge IC that provides accurate battery SOC estimation, enhancing the reliability and user experience of portable devices. Its integration-friendly design, coupled with its power-saving features, makes it a valuable component for modern battery-powered applications.
