Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Maxim Integrated
Main Purpose Special Purpose DC/DC, OLED Supply
Outputs and Type 5, Non-Isolated
Voltage - Output 1.9V, 5.35V, 6.5V, -4V, -4.5V
Output Current 120mA, 120mA, 60mA, 2mA, 2mA
Voltage - Input 2.3 V ~ 4.5 V
Regulator Topology Boost, Inverting
Frequency - Switching 1.2MHz
Board Type Fully Populated
Supplied Contents Board(s), Cable(s)
Utilized IC / Part MAX17065
Win Source Part Number 785498-MAX17065EVKIT+
Popularity Medium
Supply and Demand Status Limited
Family Name MAX17065
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MAX17065EVKIT+ CAD Model

Description

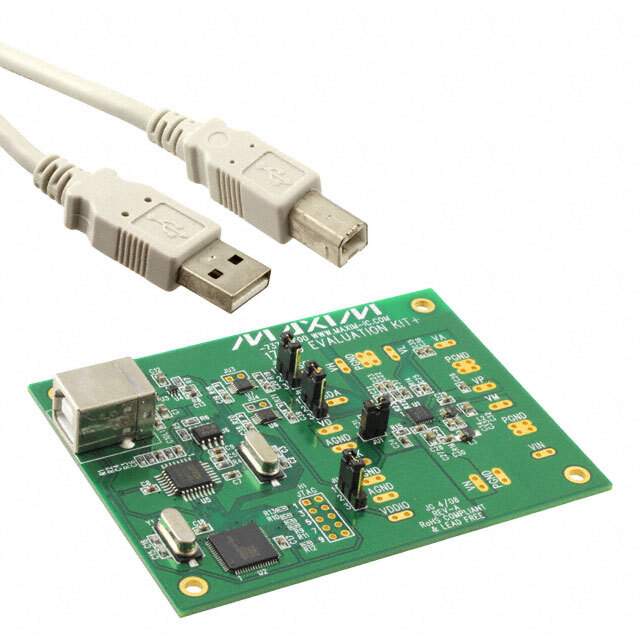

MAX17065EVKIT+ Evaluation Kit by Maxim Integrated

The MAX17065EVKIT+ from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX17065 high-performance, step-down controller. This kit offers a convenient and efficient way for designers and engineers to assess the features and performance of the MAX17065 in a practical, real-world setting, simplifying the process of integrating this controller into power-management solutions.

Key Features of the MAX17065EVKIT+

  • Versatile Input Voltage Range: The evaluation kit operates over a wide input voltage range, making it suitable for a variety of applications.
  • Adjustable Output Voltage: Users can easily adjust the output voltage to meet the requirements of their specific application, ensuring versatility and adaptability.
  • High-Efficiency Operation: The MAX17065 is designed for high efficiency, which is critical for reducing power loss and improving overall system performance.
  • Integrated Features: The controller includes an array of integrated features such as soft-start, overvoltage protection, and thermal shutdown, providing a robust power-management solution.
  • Compact Design: The evaluation kit is designed with a compact form factor, making it easy to integrate into existing designs without requiring significant additional space.
  • Comprehensive Documentation: Maxim Integrated provides detailed documentation, including schematics and layout files, to assist with the evaluation and design process.

Applications

The MAX17065EVKIT+ is ideal for testing and developing power solutions for a range of applications, including:

  • Telecommunications
  • Networking Equipment
  • Servers
  • Industrial Power Systems
  • Portable Devices

Easy to Use

Designed for ease of use, the MAX17065EVKIT+ comes equipped with test points that facilitate easy measurement of all critical signals and parameters. The evaluation kit also features jumpers and connectors that allow for quick configuration changes and experimentation without the need for soldering, making it accessible to both experienced professionals and those new to power-management design.

Overall, the MAX17065EVKIT+ from Maxim Integrated is an essential tool for anyone looking to evaluate the MAX17065 step-down controller's performance and capabilities. With its flexible design and comprehensive support materials, this evaluation kit is an invaluable resource for developing efficient and reliable power-management solutions.
