Maxim Integrated's MAX20090ATP/VY+T Automotive LED Driver

The MAX20090ATP/VY+T from Maxim Integrated is a cutting-edge solution designed to meet the demanding requirements of automotive LED lighting systems. This high-performance LED driver is engineered to provide precise control and drive for exterior and interior vehicle lighting applications, including headlights, taillights, and interior illumination.

At the core of the MAX20090ATP/VY+T is its ability to support a wide input voltage range, making it versatile for various automotive applications. It can operate efficiently with input voltages from 5V to 65V, ensuring consistent performance in the face of voltage fluctuations commonly found in automotive power systems. This feature is particularly beneficial for coping with start-stop technology and load-dump scenarios.

The device boasts an integrated high-side current-sense amplifier, which simplifies the design by reducing external component count. This integration not only saves space but also enhances system reliability. The MAX20090ATP/VY+T is also equipped with a PWM dimming decoder, which can manage LED brightness levels with high precision, providing smooth and flicker-free dimming control that is essential for automotive lighting comfort and safety.

Safety is a critical concern in automotive design, and the MAX20090ATP/VY+T addresses this with its built-in fault protection features. These include open LED detection, short-circuit protection, and over-temperature protection. These safeguards help ensure that the LED driver operates within safe parameters, thereby protecting the lighting system from potential damage and prolonging its lifespan.

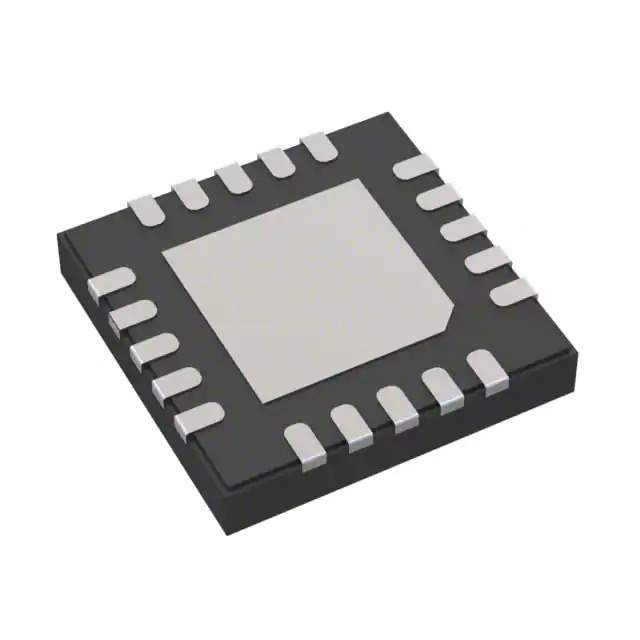

The MAX20090ATP/VY+T comes in a thermally efficient, 20-pin TQFN package with an exposed pad. This packaging not only aids in heat dissipation but also minimizes the footprint on the PCB, which is crucial in the space-constrained environments of modern vehicles.

In summary, Maxim Integrated's MAX20090ATP/VY+T is a robust and reliable LED driver solution that offers high performance, advanced features, and safety protections, making it an ideal choice for automotive manufacturers seeking to enhance the lighting systems of their vehicles.
