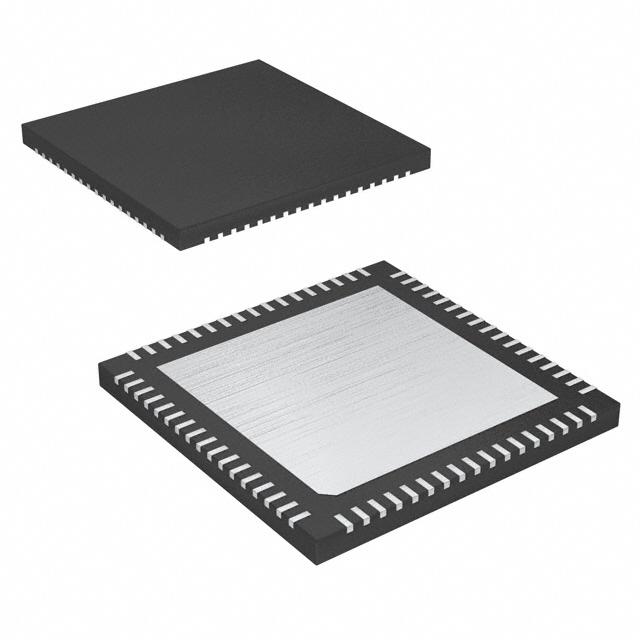

Maxim Integrated MAX2077CTK+T Ultrasound Beamformer IC

The MAX2077CTK+T from Maxim Integrated is a cutting-edge, high-performance ultrasound beamformer integrated circuit designed to meet the demanding requirements of modern ultrasound imaging systems. This advanced chip is a key component in creating high-resolution images for medical diagnostics by precisely controlling the timing and amplitude of ultrasound pulses.

Key Features

• Channels: The device features 8 channels of complete T/R (transmit/receive) switches, low-noise amplifiers (LNAs), and anti-aliasing filters, providing a comprehensive solution for ultrasound signal processing.
• High Integration: With integrated LNA, VGA, AAF, CW mixer, LDO, and digital control, the MAX2077CTK+T minimizes the need for external components, simplifying system design and reducing the overall footprint.
• Low Power Consumption: Designed for efficiency, it operates with low power consumption, making it suitable for portable ultrasound systems where power efficiency is critical.
• Adjustable Gain: The device offers programmable gain settings, allowing customization for different imaging scenarios and ensuring optimal signal quality.
• High-Speed Serial Interface: It incorporates a high-speed serial interface for control, which enables fast and reliable communication with a host processor.

Applications

The MAX2077CTK+T is ideally suited for a wide range of ultrasound applications, including:

• Portable and cart-based ultrasound systems
• 3D imaging
• Doppler and color flow imaging
• Point-of-care ultrasound devices

Technical Specifications

• Supply Voltage: The device operates over a 1.7V to 1.9V supply range for the analog supply and 1.7V to 3.6V for the digital supply.
• Package: It is offered in a 68-pin thin QFN package, which is ideal for space-constrained applications.
• Temperature Range: The operational temperature range of the MAX2077CTK+T is from -40°C to +85°C, ensuring reliable performance across various environmental conditions.

Overall, the MAX2077CTK+T ultrasound beamformer IC by Maxim Integrated represents a sophisticated blend of performance, integration, and efficiency, making it a top choice for developers and engineers in the field of medical imaging technology.
