The MAX30001CWV+ is a high-performance, single-channel, integrated biopotential and bioimpedance analog front end solution from Maxim Integrated, designed for wearable applications in fitness, health monitoring, and medical diagnostics. It is specifically engineered to meet the stringent requirements for advanced heart-rate monitoring and fitness tracking devices.

Key Features

• Integrated Biopotential (ECG, R-to-R) and Bioimpedance (BioZ) Channels: This device offers a versatile solution for capturing both ECG signals and bioimpedance measurements, enabling a wide range of health monitoring capabilities.
• Low Power Consumption: The MAX30001CWV+ is optimized for power-sensitive applications, ensuring long battery life in portable devices.
• High Resolution: With its high-resolution ADC, the device provides precise signal acquisition, which is critical for accurate heart rate detection and analysis.
• Pace Detection: The inclusion of pace detection makes it suitable for advanced cardiac monitoring, where detecting the pace of the heart is crucial.
• Lead-On Detection: The device features an integrated lead-on detection system, which is essential for ensuring proper sensor attachment and signal integrity.

Applications

The MAX30001CWV+ is ideal for a variety of applications that require reliable and accurate biometric data acquisition, such as:

• Wearable ECG and Heart Rate Monitors
• Fitness and Activity Trackers
• Portable Medical Devices
• Remote Patient Monitoring Systems
• Biometric Authentication Devices

Technical Specifications

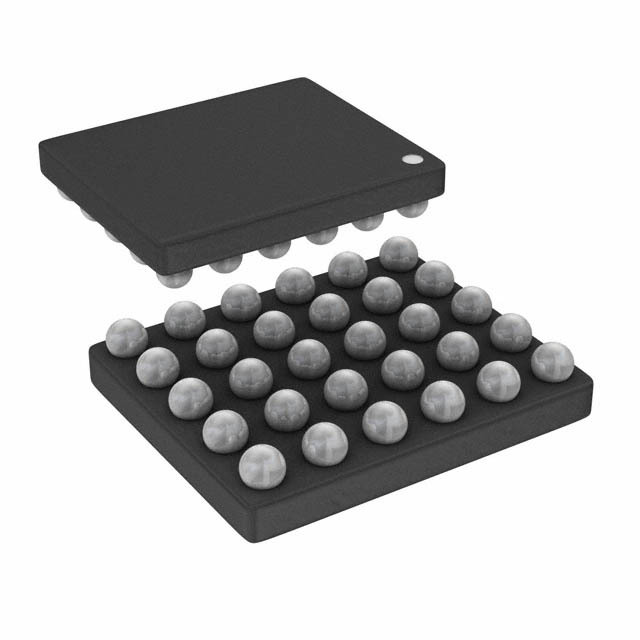

The device operates within a supply voltage range of 1.7V to 3.6V, making it compatible with most battery-operated systems. It also features a wide dynamic range and a configurable data rate to accommodate various application needs. The MAX30001CWV+ comes in a compact, 30-bump wafer-level package (WLP), which is highly suited for space-constrained designs.

Conclusion

With its advanced features and compact size, the MAX30001CWV+ from Maxim Integrated is a sophisticated solution for next-generation, high-accuracy biopotential and bioimpedance applications. It empowers designers to create innovative health and wellness devices that can deliver clinical-grade data in a user-friendly format.
