MAX3002EBP - Maxim Integrated

The MAX3002EBP from Maxim Integrated is a versatile and high-performance component designed for applications requiring low-voltage level translation. This integrated circuit is part of Maxim's extensive family of logic-level translation devices, which are engineered to provide seamless communication between different voltage domains in a wide array of electronic systems.

This specific model, the MAX3002EBP, is a bi-directional level translator that operates with two separate supply voltages; V_CCA can range from 1.2V to 3.6V, and V_CCB can range from 1.65V to 5.5V. This allows for the translation of signals between lower voltage nodes and higher voltage nodes, making it an ideal choice for multi-voltage systems, such as interfacing between microcontrollers and peripherals with different voltage requirements.

The device features a 4-bit dual-supply bus transceiver with independent direction controls, which provides the flexibility to configure the direction of each bit. Additionally, the MAX3002EBP incorporates over-voltage tolerant inputs and outputs up to 5.5V, even when powered down, ensuring robust performance and protection against voltage spikes.

With a guaranteed data rate of 100Mbps, the MAX3002EBP is suitable for high-speed signal translation in critical communication protocols. The low ON-resistance of the switches within the device minimizes signal distortion, thus preserving signal integrity across the voltage translation process.

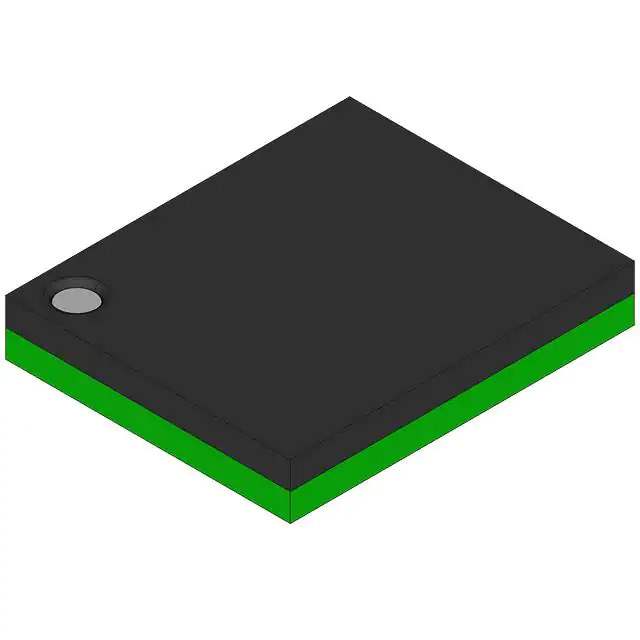

Its compact, lead-free, 20-bump wafer-level package (WLP) with a 0.5mm pitch makes it a space-saving solution for modern printed circuit boards (PCBs), where real estate is at a premium. The MAX3002EBP is fully specified over the -40°C to +85°C extended temperature range, which ensures reliable operation in diverse environments and applications such as mobile phones, PDAs, and other portable devices.

In summary, the MAX3002EBP from Maxim Integrated is a high-speed, bi-directional level translator that is essential for facilitating communication between devices operating at different voltage levels. Its robust design, high data rate capability, and compact footprint make it a top choice for designers looking to bridge the gap between varying electronic components within their systems.
