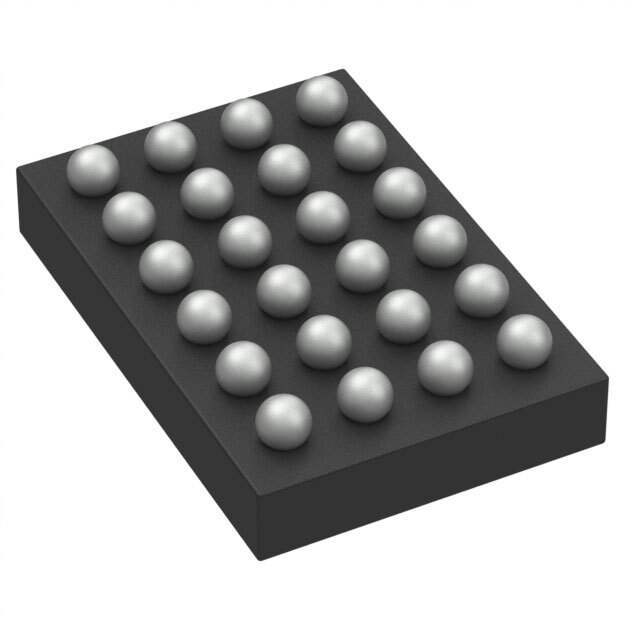

The MAX30110EWG+T from Maxim Integrated is a state-of-the-art optical sensor designed for precise and reliable sensing in medical and fitness applications. This advanced sensor module integrates a high-sensitivity photodetector, ambient light cancellation, and a custom integrated circuit that includes LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection.

Key Features

• High Sensitivity: The sensor is optimized for both red and infrared light, making it ideal for pulse oximetry and heart-rate detection.
• Low Power: It operates on a low power consumption mode, which is crucial for wearable devices that require long battery life.
• Advanced Optical Design: The optical design is robust against ambient light interference, ensuring accurate readings even in challenging lighting conditions.
• Compact Size: The small form factor of the MAX30110EWG+T makes it perfect for integration into compact devices such as smartwatches, fitness bands, and portable medical equipment.

Applications

The MAX30110EWG+T is suitable for a wide range of applications, including:

• Wearable devices for fitness tracking
• Medical monitoring devices such as pulse oximeters
• Portable health monitoring
• Sleep tracking devices

Technical Specifications

The device offers a high dynamic range and operates over a wide temperature range, making it adaptable to various user conditions. It communicates via a standard I2C-compatible interface, which allows for easy integration into existing systems. The MAX30110EWG+T is supplied in a small, 14-pin optical module package that includes internal LEDs, photodiodes, and optics, making it a complete solution for optical sensing needs.

Conclusion

Maxim Integrated's MAX30110EWG+T optical sensor is a versatile and accurate solution for developers looking to incorporate optical sensing into their health and fitness products. With its high sensitivity, low power consumption, and resistance to ambient light interference, this sensor stands out as a top choice for portable and wearable technology.
