Maxim Integrated MAX3222EEUP/V+T RS-232 Interface IC

The MAX3222EEUP/V+T from Maxim Integrated is a highly integrated RS-232 interface IC designed for serial communication in a variety of applications. This device is ideal for situations where low power consumption and space savings are critical. It is commonly used in portable or compact devices such as PDAs, laptops, and telecommunications equipment.

The MAX3222EEUP/V+T operates from a single +3.0V to +5.5V power supply, making it versatile for use in systems with different power requirements. The low-power shutdown mode further enhances its suitability for battery-powered devices, ensuring minimal power drain when the interface is not in active use.

One of the key features of this product is its integrated electrostatic discharge (ESD) protection, which exceeds ±15kV using the Human Body Model (HBM), providing robustness and reliability in harsh environments. This feature is particularly important for devices that require regular plugging and unplugging of communication cables, which can generate ESD events.

The MAX3222EEUP/V+T supports data rates up to 120kbps, which is sufficient for many serial communication applications. Additionally, it has a 1µA low-current shutdown mode and a 300µA supply current during operation, which contributes to its power efficiency. The device also includes two drivers and two receivers, offering a complete solution for full-duplex communication.

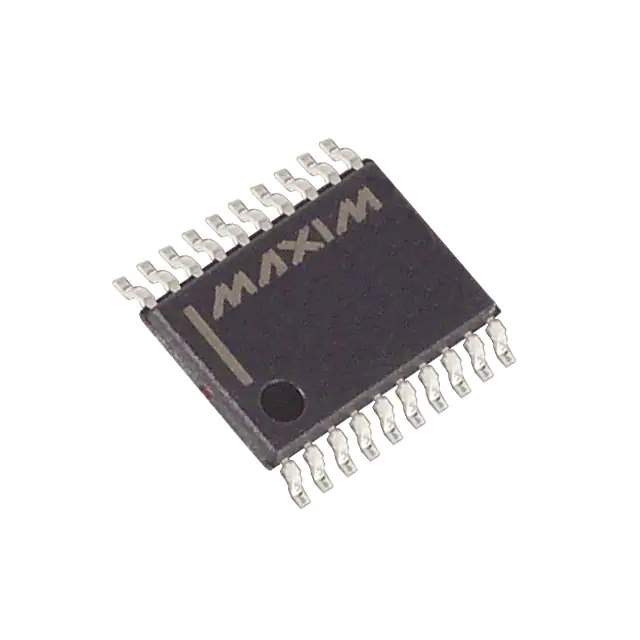

This IC comes in a TSSOP-20 package, which is compact and suitable for space-constrained applications. The MAX3222EEUP/V+T is specified for the extended industrial (-40°C to +85°C) temperature range, ensuring reliable operation across a wide range of environmental conditions.

To facilitate easy integration into existing designs, the MAX3222EEUP/V+T is fully compliant with the EIA/TIA-232-F standards. This ensures compatibility with a broad range of RS-232 peripherals and systems, simplifying the design and implementation process for engineers.

Overall, the Maxim Integrated MAX3222EEUP/V+T is a high-quality, reliable RS-232 interface IC that offers low power consumption, ESD protection, and compact packaging, making it an excellent choice for designers looking to add serial communication capabilities to their battery-powered or space-sensitive applications.
