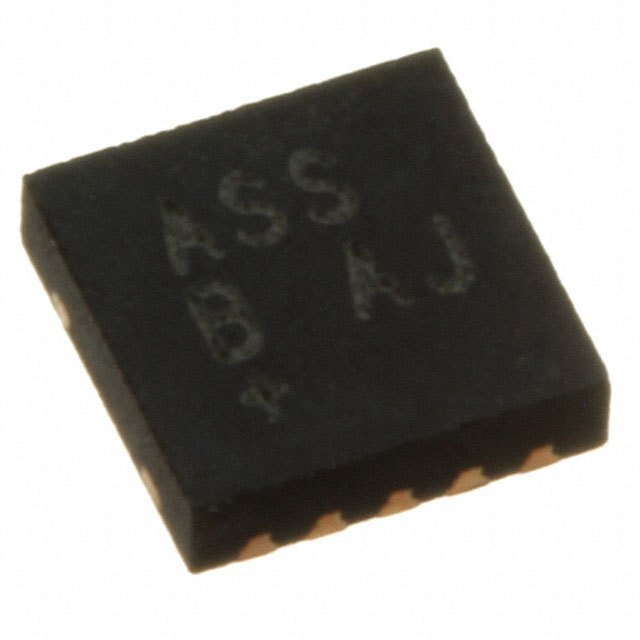

Maxim Integrated MAX4684ETB+T Analog Switch

The Maxim Integrated MAX4684ETB+T is a high-performance, single-pole/double-throw (SPDT) analog switch that delivers exceptional signal integrity and low power consumption. Designed with precision and reliability in mind, this compact switch is housed in a tiny 10-pin TDFN package, making it an ideal choice for space-constrained applications where efficiency and footprint are critical.

With its wide operating voltage range of 1.8V to 5.5V, the MAX4684ETB+T is versatile enough to fit into a variety of circuit designs, from battery-powered portable devices to larger, more power-intensive systems. This flexibility is further enhanced by its low on-resistance (R<sub>ON) of just 0.5Ω (typical), which ensures minimal signal distortion and power loss across the switch, thereby preserving the integrity of the signal path.

The MAX4684ETB+T boasts a fast switching speed, with turn-on and turn-off times typically less than 250ns, providing rapid response times for critical applications. This feature is particularly useful in systems that require quick signal routing changes or fast switching between different signal sources.

Additionally, this analog switch offers a high level of integration, featuring built-in break-before-make switching action. This prevents signal overlap during the transition from one path to another, eliminating potential short-circuit conditions and protecting downstream components from damage. The MAX4684ETB+T also includes ESD protection, which safeguards the device against electrostatic discharges, further ensuring the longevity and reliability of your product.

Maxim Integrated has designed the MAX4684ETB+T with a low power consumption profile, drawing a mere 0.01µA (typical) in the off state, which is crucial for battery-powered devices where energy efficiency is paramount. This low leakage current helps extend battery life and reduces the overall power footprint of the system.

In summary, the Maxim Integrated MAX4684ETB+T analog switch is a high-quality, efficient solution for designers looking to incorporate a reliable SPDT switch into their electronic projects. Its low on-resistance, fast switching speed, wide voltage range, and low power consumption make it a versatile and valuable component in a wide array of applications.
