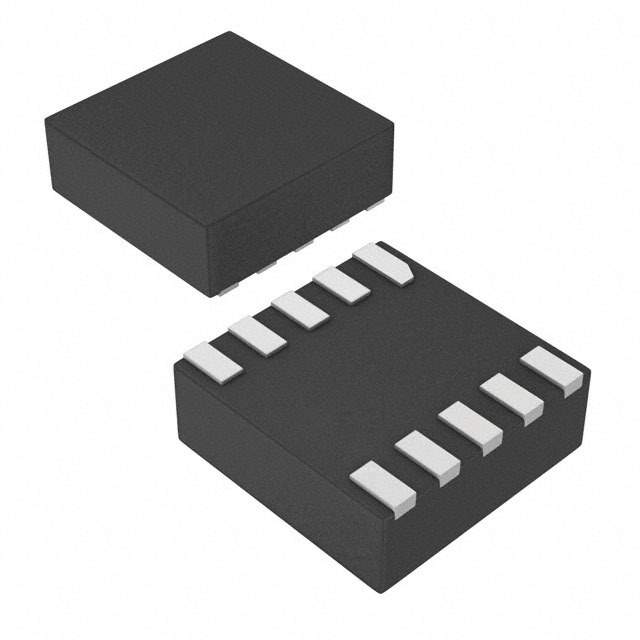

Maxim Integrated MAX4744HELB+ Overview

The MAX4744HELB+ is a high-performance, low-voltage, single-pole/double-throw (SPDT) analog switch from Maxim Integrated. Engineered for precision and reliability, this switch is an ideal choice for a wide range of applications, including signal routing in communication systems, data acquisition, and audio/video signal switching.

Key Features

• Low On-Resistance: The device boasts a low on-resistance of 0.5Ω (typical), which minimizes signal distortion and ensures high-quality signal transmission.
• Single Supply Operation: It operates from a single +1.8V to +5.5V supply, making it suitable for portable and battery-powered devices.
• High Current Handling: The MAX4744HELB+ can handle continuous current up to 300mA, which is sufficient for most low-power applications.
• Low Power Consumption: With its low power consumption, it extends battery life in portable applications, making it an energy-efficient choice.
• ESD Protection: It features enhanced electrostatic discharge (ESD) protection, which safeguards the device against unexpected voltage spikes.
• Compact Package: Available in a tiny µMAX package, this switch saves valuable board space in space-constrained applications.

Applications

• Portable Devices
• Audio and Video Signal Routing
• Data Acquisition Systems
• Communication Devices
• Medical Equipment

Technical Specifications

The MAX4744HELB+ features fast switching speeds, with a turn-on time of less than 10µs and a turn-off time of less than 5µs, ensuring quick response times for critical applications. The device also has a low charge injection of only 10pC (typical), which helps to maintain signal integrity.

Conclusion

The Maxim Integrated MAX4744HELB+ analog switch offers a versatile and efficient solution for designers looking to optimize their systems with reliable signal switching capabilities. Its combination of low on-resistance, high current capacity, and compact form factor makes it a top contender for a multitude of electronic applications.
