Maxim Integrated MAX5153AEEE+ Dual, 10-Bit Voltage-Output DAC

The MAX5153AEEE+ is a precision, dual, 10-bit digital-to-analog converter (DAC) designed by Maxim Integrated to deliver high-performance output in a compact package. This device is ideal for applications requiring accurate voltage control and conversion from digital signals to stable analog outputs. The MAX5153AEEE+ is an excellent choice for use in automatic test equipment, digital gain and offset adjustment, industrial process control, and closed-loop servo-control systems.

One of the key features of the MAX5153AEEE+ is its dual DAC configuration, which allows for independent voltage output channels. Each channel can be individually programmed via a 3-wire serial interface, which is compatible with SPI, QSPI, and MICROWIRE protocols, offering flexibility and ease of integration into various system architectures. The serial interface also includes a 16-bit shift register, which supports daisy-chaining multiple devices for simplified connectivity in systems requiring more than two DACs.

The MAX5153AEEE+ operates from a single +2.7V to +5.5V power supply, making it suitable for both portable and fixed power applications. It boasts a low power consumption, with a typical quiescent current of only 230µA, which is beneficial for battery-powered devices. The DAC also features a power-down mode that reduces current consumption to 0.4µA (typ), further conserving energy when the device is not in active use.

Accuracy is a paramount consideration in DAC applications, and the MAX5153AEEE+ does not disappoint. It offers a ±1 LSB DNL (Differential Nonlinearity) and ±1 LSB INL (Integral Nonlinearity), ensuring precision in the conversion process. The output voltage range is user-selectable between 0V to VREF or 0V to 2 x VREF, giving designers flexibility with output scaling to meet specific application requirements.

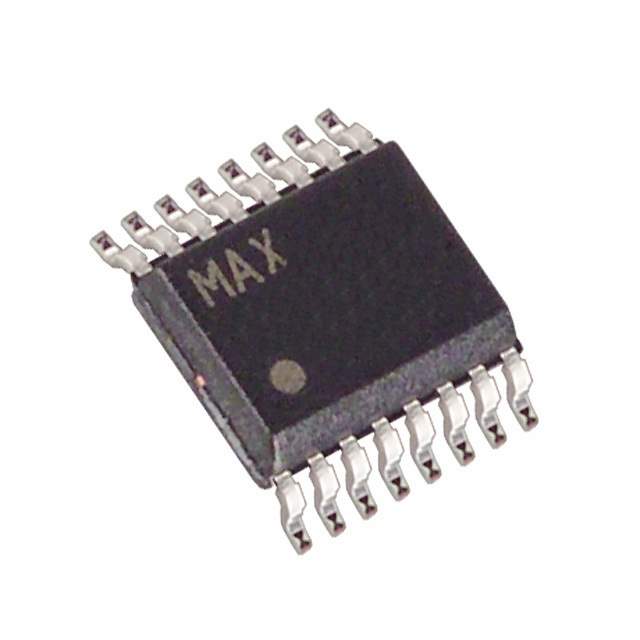

The MAX5153AEEE+ is available in a 16-pin QSOP package, which is designed to minimize the board space required for DAC implementation. The device also features a reset function that clears the serial interface and sets the DAC outputs to zero scale, providing a known startup condition and simplifying system initialization.

With its combination of dual-channel output, low power consumption, high accuracy, and compact form factor, the Maxim Integrated MAX5153AEEE+ DAC is a versatile and reliable solution for a wide range of precision voltage conversion applications.
