The MAX5883EGM+D from Maxim Integrated is a high-performance, 16-bit digital-to-analog converter (DAC) designed for advanced communication systems and signal synthesis applications. With a maximum sampling rate of 200Msps (mega-samples per second), this DAC delivers the speed and precision required for high-speed signal processing tasks.

The device operates with a single 3.0V to 3.6V supply, providing an excellent dynamic performance with a 72.5dB signal-to-noise ratio (SNR) and 88dB spurious-free dynamic range (SFDR) at fOUT = 70MHz. These features make the MAX5883EGM+D an ideal choice for demanding applications such as wireless base stations, cable modem termination systems, and broadband wireless access points.

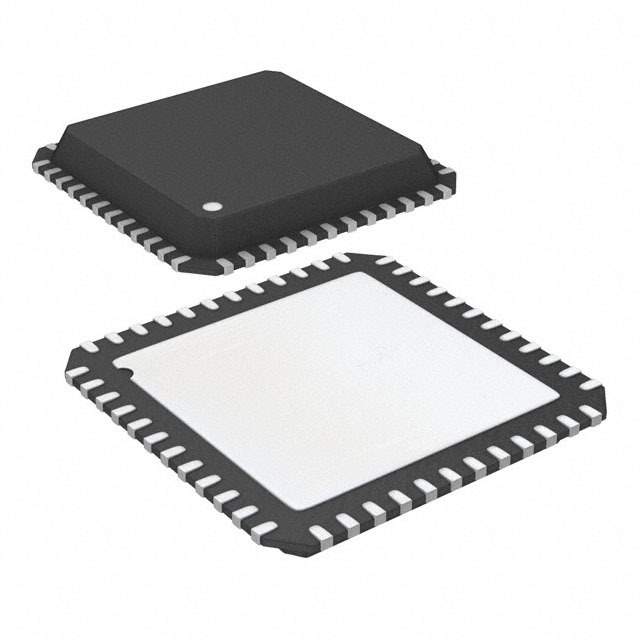

The MAX5883EGM+D comes in a 48-pin QFN-EP (7mm x 7mm) package, which is compact and suitable for space-constrained applications. It also includes an internal 1.2V reference, although an external reference can be used for enhanced flexibility. The device's digital interface supports double data rate (DDR) LVDS inputs to accommodate the high input data rates.

Key features of the MAX5883EGM+D include:

• 16-Bit Resolution
• 200Msps Update Rate
• 3.0V to 3.6V Single Supply Operation
• 72.5dB SNR and 88dB SFDR at 70MHz Output
• Internal 1.2V Reference (External Reference Capable)
• 48-Pin QFN-EP Package
• DDR LVDS Inputs

The MAX5883EGM+D provides a versatile solution for a wide range of high-speed DAC applications. Its high-speed operation, combined with low power consumption and a small footprint, makes it an excellent choice for engineers and designers looking to push the boundaries of performance in their digital-to-analog conversion tasks.
