Product Overview: MAX6955AAX+ from Maxim Integrated

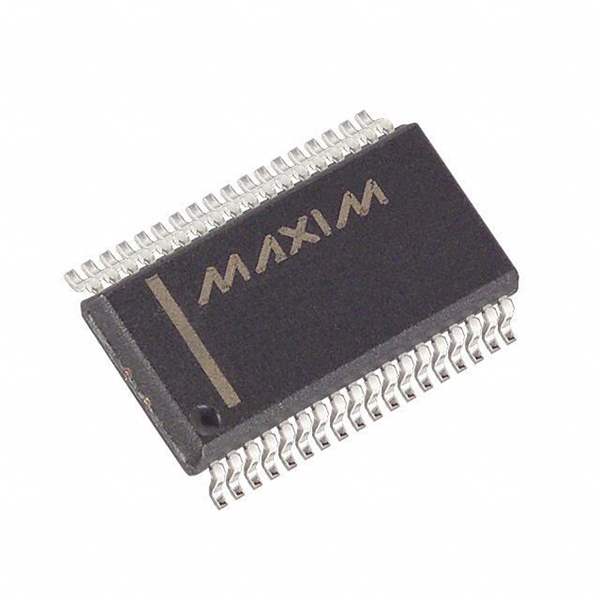

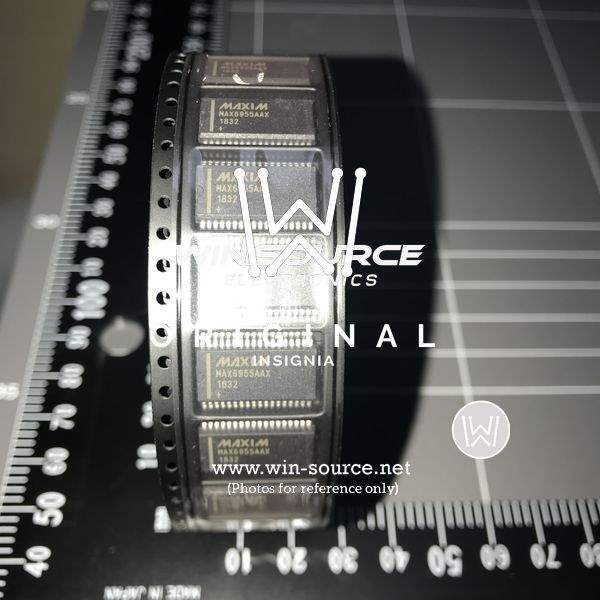

The MAX6955AAX+ is a versatile LED display driver from Maxim Integrated, designed to interface with common-cathode digits and control up to 16 individual 7-segment, 14-segment, or 16-segment alphanumeric characters. This powerful driver is housed in a compact 36-SSOP package, making it an ideal choice for applications with space constraints.

One of the key features of the MAX6955AAX+ is its built-in multiplex scan circuitry, which allows it to drive displays with minimal external components. This reduces both system complexity and cost. The driver supports both serial and parallel interfaces, offering flexibility in system design and integration. It is capable of interfacing with SPI™, QSPI™, MICROWIRE™, and I²C-compatible serial interfaces, as well as an 8-bit parallel interface.

The MAX6955AAX+ is equipped with an array of functionalities that enhance its performance and ease of use. It includes digit and segment drivers, which can be adjusted individually for precise brightness control. Additionally, the driver features keyscan capabilities, supporting up to 32 switches, which eliminates the need for an additional switch-detecting microcontroller.

This display driver operates over a wide supply voltage range of 2.7V to 5.5V, making it suitable for both 3V and 5V systems. It also boasts a temperature range of -40°C to +125°C, ensuring reliable operation under various environmental conditions. The MAX6955AAX+ is designed with power-saving features, including a shutdown mode that minimizes power consumption when the display is not in use.

The MAX6955AAX+ is an ideal solution for applications requiring dynamic display capabilities, such as industrial control panels, set-top boxes, and instrumentation displays. Its robust feature set ensures designers can create versatile and visually appealing interfaces, while its integration-friendly design simplifies the development process.

Overall, the MAX6955AAX+ by Maxim Integrated is a highly functional LED display driver that offers a blend of performance, efficiency, and ease of use, making it a top choice for engineers and designers looking to enhance their display systems.
