Maxim Integrated MAX747CPD Power-Supply Controller

The MAX747CPD from Maxim Integrated is a high-efficiency, pulse-width modulated (PWM), step-down DC-DC controller that is designed to provide a reliable and efficient power supply solution for a wide range of applications. This compact and versatile controller is capable of delivering high-performance regulation with a low number of external components, making it an ideal choice for space-constrained designs.

The MAX747CPD operates over a wide input voltage range, making it suitable for processing power from various sources, including batteries, adapters, and regulated power rails. Its ability to handle input voltages from 4.5V to 18V allows for flexibility in system design and ensures compatibility with a diverse set of applications.

One of the key features of the MAX747CPD is its high-frequency operation, which can be set up to 300kHz. This high switching frequency enables the use of smaller external components, such as inductors and capacitors, reducing the overall footprint and cost of the power supply design. Additionally, the device offers a high level of efficiency, which is critical for battery-powered devices, as it extends battery life and reduces thermal issues.

The MAX747CPD is equipped with a range of protection features to ensure the safety and longevity of the end application. These include overvoltage protection, undervoltage lockout, and thermal shutdown. The controller also features soft-start capability, which minimizes inrush current during startup, thereby preventing potential damage to the device and the load.

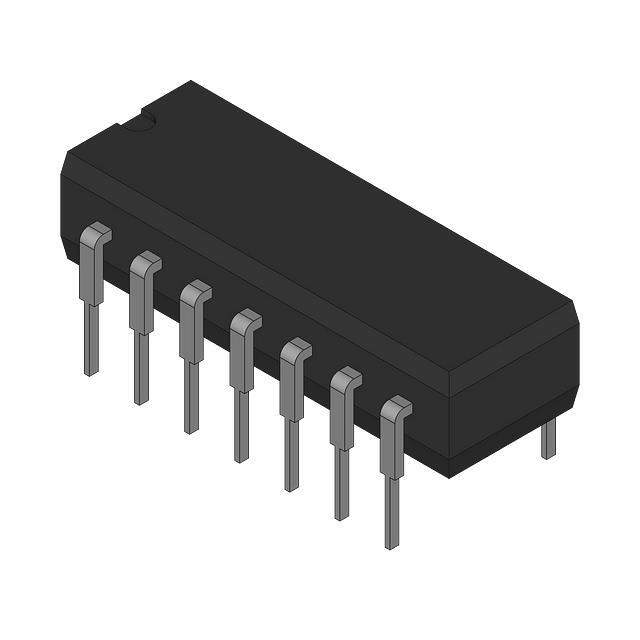

This controller is packaged in a 14-pin DIP (Dual In-line Package), which is known for its ease of handling and soldering onto printed circuit boards. The MAX747CPD is suitable for a variety of applications, including distributed power systems, portable devices, telecommunications equipment, and computer peripherals.

In summary, the Maxim Integrated MAX747CPD power-supply controller is a highly efficient, versatile, and robust solution for DC-DC conversion needs. Its high-frequency operation, comprehensive protection features, and compact packaging make it an excellent choice for designers looking to optimize their power management systems.
