The MAX803MEXR is a compact, highly precise voltage monitoring integrated circuit (IC) developed by Maxim Integrated. This microprocessor (µP) supervisory circuit is designed to keep systems within safe voltage levels by monitoring the power supply voltage in digital systems. It is particularly suitable for applications that require a reliable operation over a wide temperature range and are sensitive to power supply fluctuations.

Key Features:

• Voltage Threshold: The MAX803MEXR has a preset threshold voltage of 2.93V, making it ideal for 3V systems, ensuring that the system operates within safe voltage parameters.
• Reset Output: It provides an active-low reset output, which guarantees a minimum reset pulse width of 140ms, offering sufficient time for the system to stabilize upon power-up, voltage drop, or brownout conditions.
• Low Power Consumption: With its low power consumption, this IC is an excellent choice for battery-operated and portable devices, helping to extend battery life and reduce overall power usage.
• High Precision Monitoring: The MAX803MEXR offers high precision voltage monitoring, ensuring that devices operate reliably and are protected from unpredictable power supply issues.
• Temperature Range: This device operates over an extended temperature range of -40°C to +85°C, which is suitable for industrial applications and harsh environments.

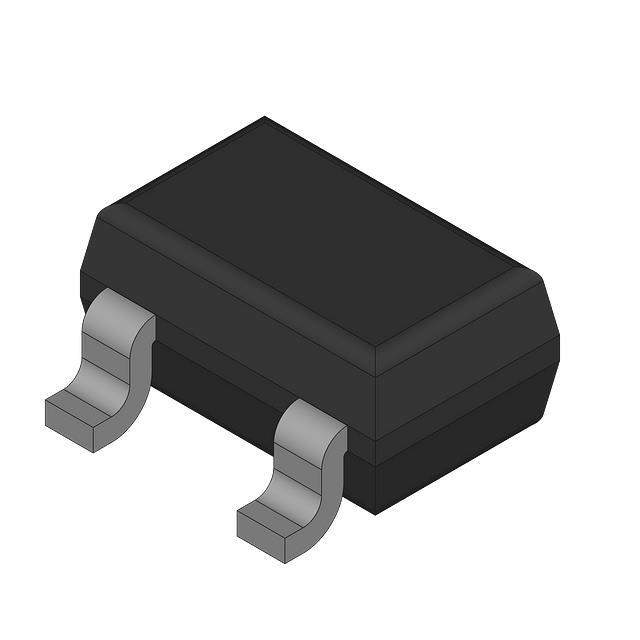

• Small Footprint: The IC is available in a small SOT-323 package, which is advantageous for space-constrained applications.

Applications:

The MAX803MEXR is versatile and can be used in a wide array of applications, including:

• Computers and Servers
• Embedded Systems
• Portable/Battery-Powered Equipment
• Networking Equipment
• Industrial Controllers

Conclusion:

In summary, the MAX803MEXR from Maxim Integrated is a reliable and precise voltage monitor IC that offers critical protection to digital systems by ensuring they operate within the appropriate voltage range. Its low power consumption, small size, and wide operating temperature range make it an ideal solution for a variety of applications where accurate voltage monitoring is essential.
