Product Overview: MAX913MJA from Maxim Integrated

The MAX913MJA is a high-speed, single-supply, TTL comparator crafted by Maxim Integrated, designed to deliver exceptional performance in fast digital circuits. This precision device is well-suited for a wide range of applications, including zero-crossing detectors, high-speed signal processing, and pulse-width modulation (PWM) circuits.

With its fast propagation delay of typically 10ns and low power consumption, the MAX913MJA is engineered to meet the demands of high-performance systems where speed and efficiency are paramount. The comparator operates from a single +5V supply, making it an ideal choice for TTL logic systems, and it can also be powered from a +4.5V to +5.5V range for added flexibility.

Key Features


• Fast Propagation Delay: With a typical delay of just 10ns, the MAX913MJA ensures quick response times in critical timing applications.

• Single +5V Supply: Designed for easy integration into TTL environments, this comparator works smoothly with a standard +5V supply.

• Low Power Consumption: Maxim Integrated has optimized the MAX913MJA for minimal power draw, making it suitable for battery-powered and energy-sensitive designs.

• High Input Impedance: The device features a high input impedance, which minimizes loading on the input source and preserves signal integrity.

• Output Latch Capability: It includes an output latch function that allows the user to hold the output state, which is useful in complex timing circuits.

Applications


• High-speed digital systems

• Zero-crossing detectors

• Pulse-width modulation (PWM) control

• High-frequency timing circuits

• Window comparators

• Voltage level translation from TTL to CMOS

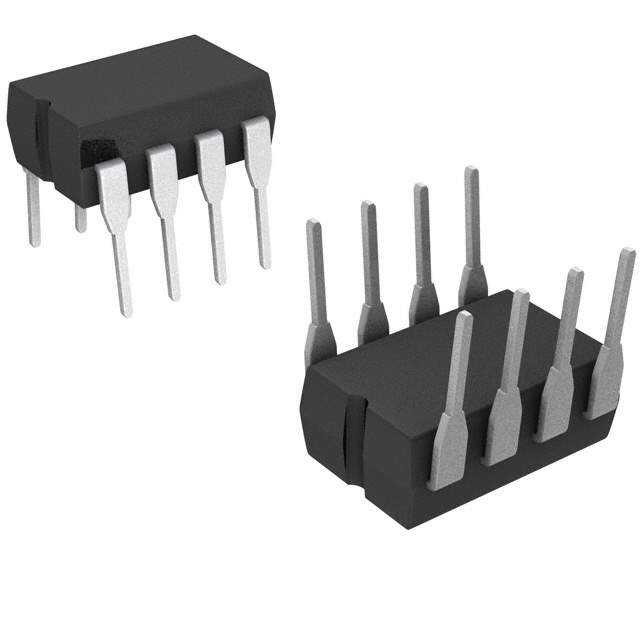

The MAX913MJA from Maxim Integrated is presented in a compact 8-pin CERDIP package, ensuring robustness and reliability even in harsh industrial environments. Its combination of high-speed performance, low power consumption, and single-supply operation makes it a versatile component for designers looking to optimize their digital systems for both speed and power efficiency.
