Maxim Integrated MAX9705DETB+T Class D Audio Amplifier

The MAX9705DETB+T from Maxim Integrated is a high-efficiency, low-power Class D audio amplifier that offers a compact and energy-efficient solution for portable audio applications. This component is part of Maxim's extensive range of audio devices that are designed to deliver superior sound quality and performance while minimizing power consumption and space requirements.

The MAX9705DETB+T operates from a single 2.7V to 5.5V supply, making it ideal for battery-powered devices such as smartphones, tablets, laptops, and portable media players. It delivers up to 2.3W per channel into a 4Ω load, which provides ample power for most portable audio needs. The amplifier's high efficiency of 92% helps to extend battery life, which is crucial for mobile devices.

This audio amplifier incorporates a digital volume control, which allows precise volume adjustment through a simple two-wire interface. The volume control feature is highly beneficial for users, as it provides a wide range of volume settings to suit different listening environments and preferences.

The MAX9705DETB+T also features a low 0.02% THD+N (Total Harmonic Distortion plus Noise), ensuring a clear and high-quality audio output. Its filterless modulation scheme eliminates the need for bulky external filter components, thus reducing the overall solution size and simplifying the circuit design.

With its built-in click-and-pop suppression, the MAX9705DETB+T minimizes the audible clicks and pops that can occur during power-up or shutdown, providing a smoother user experience. Additionally, the device includes comprehensive protection against faults, such as over-temperature and short-circuit protection, enhancing its reliability and robustness in various applications.

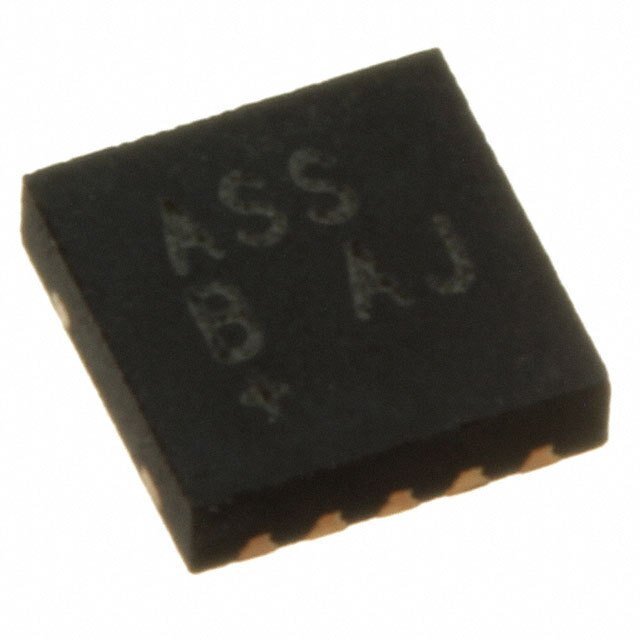

The MAX9705DETB+T is available in a tiny 16-pin TQFN package, making it an excellent choice for space-constrained applications. Its surface-mount package is compatible with automated assembly lines, ensuring ease of integration into mass-produced consumer electronics.

In summary, the Maxim Integrated MAX9705DETB+T Class D audio amplifier is a versatile and powerful audio solution that combines high-quality sound, efficiency, and a small form factor, making it an outstanding choice for designers looking to enhance the audio performance of their portable devices.
