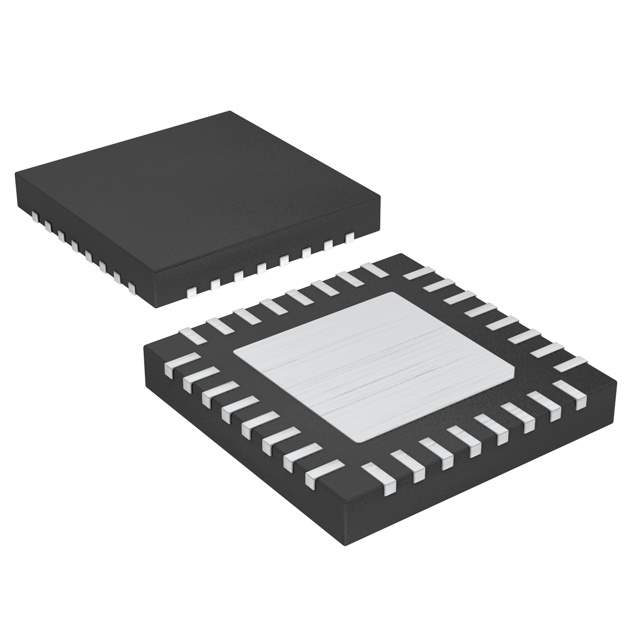

Maxim Integrated MAX9736AETJ+T Class D Audio Amplifier

The MAX9736AETJ+T by Maxim Integrated is a high-efficiency, Class D audio amplifier that delivers premium sound quality for a wide range of applications. This mono amplifier is designed to provide a high-quality audio experience while minimizing power loss, making it an ideal choice for battery-powered devices where energy efficiency is crucial.

With its integrated single-ended input structure, the MAX9736AETJ+T simplifies the audio signal chain by reducing the need for external components. This not only saves space on the PCB but also helps in reducing the overall system cost. The device operates over a wide 8V to 28V supply voltage range, providing designers with flexibility in various power supply scenarios.

The MAX9736AETJ+T boasts an impressive 10W to 15W output power range (depending on the supply voltage and load), which allows it to drive speakers with sufficient volume in home theater systems, desktop audio setups, and portable speakers. Furthermore, its high 92% efficiency ensures that the amplifier stays cool during operation, which is particularly beneficial in enclosed environments where heat dissipation is a concern.

One of the key features of this audio amplifier is its adjustable gain settings, which can be configured through external gain-setting resistors. This feature provides users with the flexibility to tailor the audio output to match specific speaker requirements or to compensate for variations in input signal levels.

The MAX9736AETJ+T is also equipped with comprehensive protection circuitry, including overcurrent protection, thermal protection, and undervoltage lockout, ensuring reliable operation and safeguarding the amplifier and speakers from potential damage.

Offered in a compact 32-pin TQFN package, the MAX9736AETJ+T is designed for space-constrained applications. Its small footprint is particularly advantageous for portable audio devices, sound bars, and other compact audio systems where space is at a premium.

In summary, the Maxim Integrated MAX9736AETJ+T Class D audio amplifier is a powerful, efficient, and versatile solution for modern audio applications, delivering high-quality sound with the reliability and performance expected from a leading semiconductor manufacturer.
