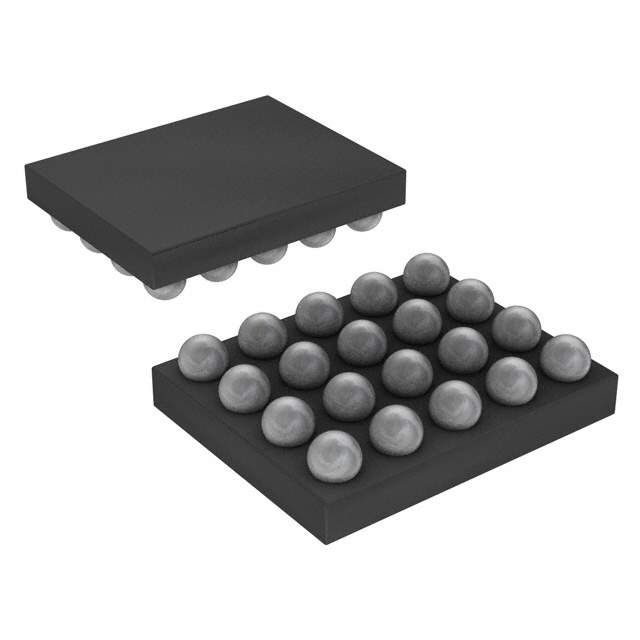

Maxim Integrated MAX9788EBP+T Class D Audio Amplifier

The MAX9788EBP+T from Maxim Integrated is a high-efficiency, Class D audio amplifier designed to deliver exceptional audio performance for a wide range of applications. This compact, integrated circuit is ideal for portable devices where power efficiency and space constraints are critical considerations. With its advanced technology, the MAX9788EBP+T is capable of providing high-quality sound amplification while minimizing power losses, making it an excellent choice for battery-powered devices such as smartphones, tablets, and portable speakers.

This audio amplifier operates over a wide 2.7V to 5.5V supply voltage range, which allows it to be used in various system configurations. Its high efficiency of 85% at 1.4W into 8Ω helps to extend battery life in portable applications. The MAX9788EBP+T also features a low 0.02% THD+N (Total Harmonic Distortion plus Noise) at 1W, ensuring crystal-clear audio reproduction that is free from distortion and noise.

The device comes in a compact, 20-Pin TQFN-EP (Exposed Pad) package, which is not only space-saving but also enhances thermal performance for improved reliability. Additionally, the MAX9788EBP+T includes comprehensive protection features such as short-circuit protection and thermal overload protection, which safeguard the IC and the connected speakers from potential damage due to abnormal operating conditions.

One of the key features of the MAX9788EBP+T is its flexibility. It includes fully differential inputs, which reduce RF interference and improve sound quality. Furthermore, the amplifier has an adjustable gain control that allows designers to optimize the audio performance for their specific application. The device also includes a low-power shutdown mode, which reduces power consumption when the amplifier is not in use.

Overall, the MAX9788EBP+T Class D audio amplifier from Maxim Integrated is a powerful, efficient, and versatile solution for portable audio applications. Its high-quality audio performance, combined with its power-saving features and compact footprint, make it an excellent choice for designers looking to enhance the audio experience in their next-generation portable devices.
