Maxim Integrated's MAXM17625AMB+ Power Module

The MAXM17625AMB+ is a highly integrated, efficient, and versatile DC-DC power module from Maxim Integrated, designed to simplify power design for a wide range of applications. This compact, high-performance module integrates a synchronous step-down regulator with built-in inductors, capacitors, and resistors, providing a complete power solution that minimizes design time and reduces board space requirements.

Key Features

• Wide Input Voltage Range: The module operates from a 4.5V to 36V input, making it suitable for various supply voltages and capable of withstanding transients and surges without additional components.
• Adjustable Output Voltage: It offers an adjustable output voltage from 0.9V to 12V, accommodating a broad spectrum of power needs for different ICs and systems.
• High Efficiency: With its integrated synchronous rectification, the MAXM17625AMB+ achieves high efficiency, which is critical for thermal management and energy savings in compact designs.

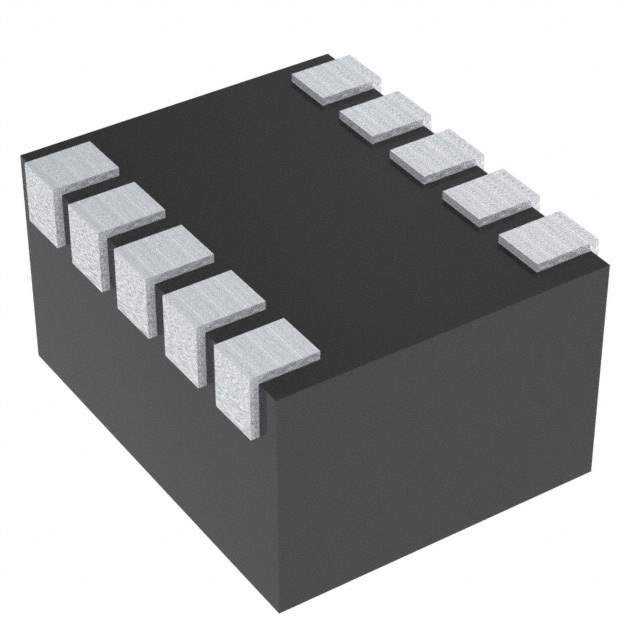

• Compact Solution: The module's small 2.6mm x 3.0mm x 1.5mm package saves precious board space, making it ideal for space-constrained applications.
• Integrated Components: The inclusion of built-in inductors and capacitors reduces the need for external components, simplifying the design and reducing the bill of materials.
• Easy to Use: The power module requires minimal external components, making it easy to use and reducing the risk of design errors.

Applications

The MAXM17625AMB+ is an excellent choice for a variety of applications, including but not limited to:

• Point-of-Load (POL) power supplies
• Industrial control and automation
• Telecommunications and networking equipment
• Automotive infotainment and telematics
• Portable and battery-powered devices

In summary, the MAXM17625AMB+ from Maxim Integrated offers designers a robust, efficient, and space-saving power solution that can be rapidly deployed across multiple platforms, reducing development time and accelerating time-to-market for a wide range of electronic products.
