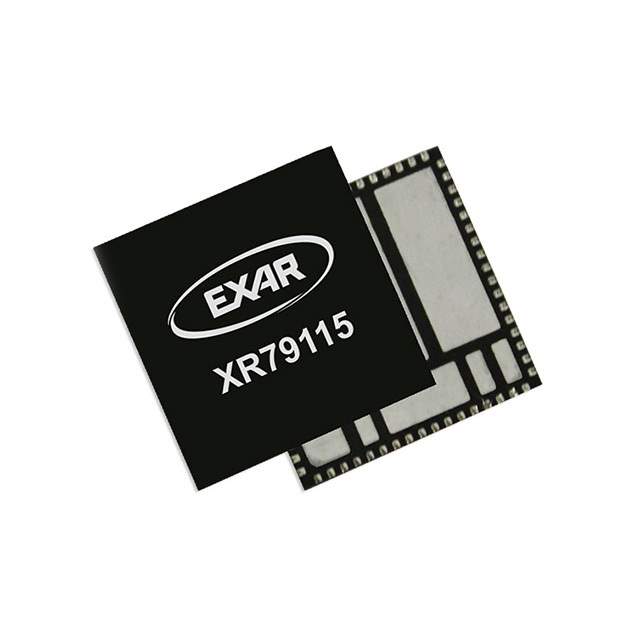

XR79115EL-F Real Image
Same model may have multiple batches, images only for reference.

XR79115EL-F

Part No XR79115EL-F
Manufacturer MaxLinear Inc
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-5.5V
Datasheet
XR79115EL-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 19 Weeks
Features Non-Isolated PoL Module DC DC Converter Output 0.6 ~ 5.5V - - 15A 4.5V - 22V Input
Manufacturer MaxLinear Inc
Package Tray
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 68-PowerBQFN Module
Case / Package 68-QFN (12x12)
Family Name XR79115
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 1016-2070, XR79115
Quantity per package 168
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904093-XR79115EL-F
Ultra Librarian 3D Model Ultra Librarian XR79115EL-F CAD Model

Description

The MaxLinear Inc XR79115EL-F is a non-isolated PoL module DC-DC converter output with a range of 0.6V to 5.5V and a maximum current of 15A.

  • Output Voltage: 0.6V to 5.5V
  • Maximum Current: 15A
  • Input Voltage Range: 4.5V to 22V
  • Operating Temperature: -40°C to 125°C
  • Package Type: 68-PowerBQFN Module
  • Mounting Type: Surface Mount
  • Family: XR79115
  • Category: Power Supplies-Board Mount
  • ECCN: EAR99
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Pieces per Package: 168
  • MSL Level: 3
  • Estimated Production Lead Time: 19 weeks
  • HTSUS: 8542.39.0001
  • Other Part Numbers: 1016-2070, XR79115
