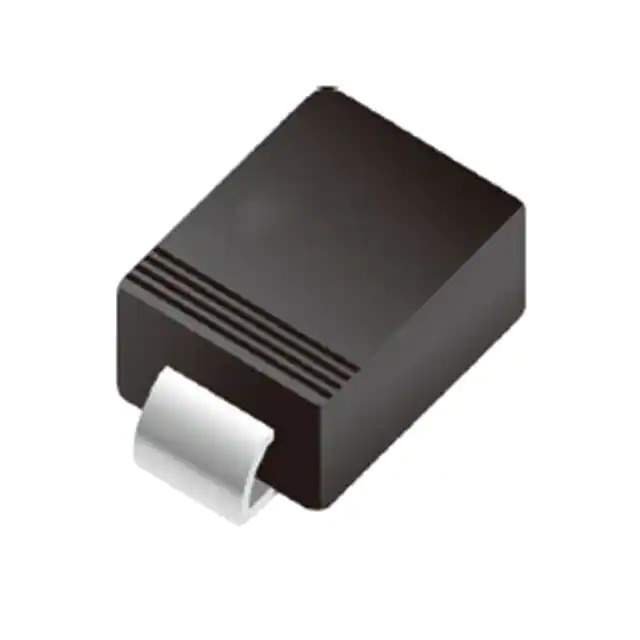

S2MB Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMB
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Capacitance @ Vr, F 25pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 662634-S2MB
Ultra Librarian 3D Model Ultra Librarian S2MB CAD Model

Description

The SMB is a standard rectifier diode from MDD.

  • Voltage Rating: 1000V
  • Current Rating: 2A
  • Forward Voltage Drop: 1.1V @ 2A
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Capacitance: 25pF @ 4V, 1MHz
  • Operating Temperature: -55°C to 150°C
  • Standard Package: 12,000 pcs
  • Status: Active
