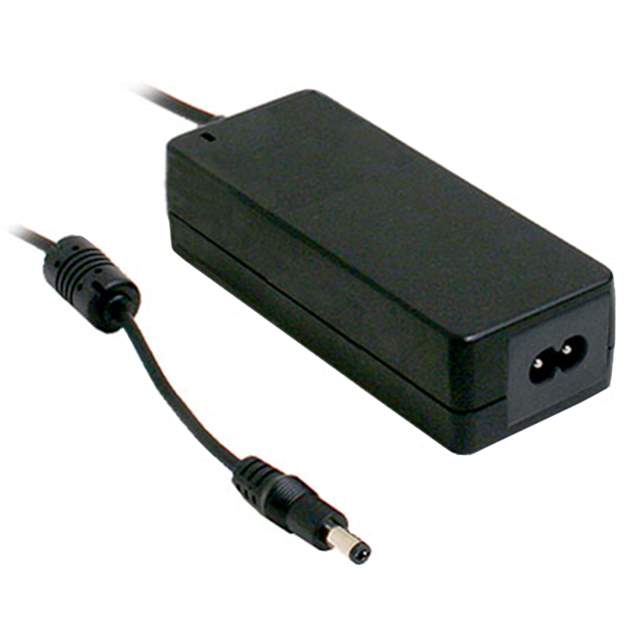

GSM40B18-P1J Real Image
Same model may have multiple batches, images only for reference.

GSM40B18-P1J

Part No GSM40B18-P1J
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog AC DC Desktop, Wall Adapters
Description AC/DC DESKTOP ADAPTER 18V 40W / 18V 40 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
Datasheet
GSM40B18-P1J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Desktop, Wall Adapters
Mfr MEAN WELL USA Inc.
Series GSM40B (40W)
Package Box
Region Utilized International
Form Desktop (Class II)
Input Type Cord (Sold Separately)
Voltage - Input 80 ~ 264 VAC
Voltage - Output 18V
Current - Output (Max) 2.22A
Power (Watts) 40 W
No Load Power Consumption 100mW (Max)
Polarization Positive Center
Applications Medical
Efficiency Level VI
Temperature Range - Operating -30°C ~ 70°C
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Cord Length 59" (1.50m)
Input Connector IEC 320-C8
Dimension 4.92" L x 2.36" W x 1.26" H (125.0mm x 60.0mm x 32.0mm)
Approval Agency CB, CE, cURus, TUV
Base Product Number GSM40B18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-2010,GSM40B18-P1J-ND
Standard Package 40
Win Source Part Number 975390-GSM40B18-P1J
Ultra Librarian 3D Model Ultra Librarian GSM40B18-P1J CAD Model

Description

The GSM40B18-P1J is a 40W AC DC desktop, wall adapter from the GSM40B (40W) series.

  • Manufacturer: MEAN WELL USA Inc.
  • Series: GSM40B (40W)
  • Polarization: Positive center
  • Input Voltage Range: 80 ~ 264 VAC
  • Current Output: 2.22A
  • Efficiency Level: VI
  • Temperature Range: -30°C to 70°C
  • No-Load Power Consumption: 100mW (Max)
  • Output Connector: Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
  • Input Connector: IEC 320-C8
  • Cord Length: 59" (1.50m)
  • Dimension: 4.92" L x 2.36" W x 1.26" H (125.0mm x 60.0mm x 32.0mm)
  • Approvals: CB, CE, cURus, and TUV
