Same model may have multiple batches, images only for reference.

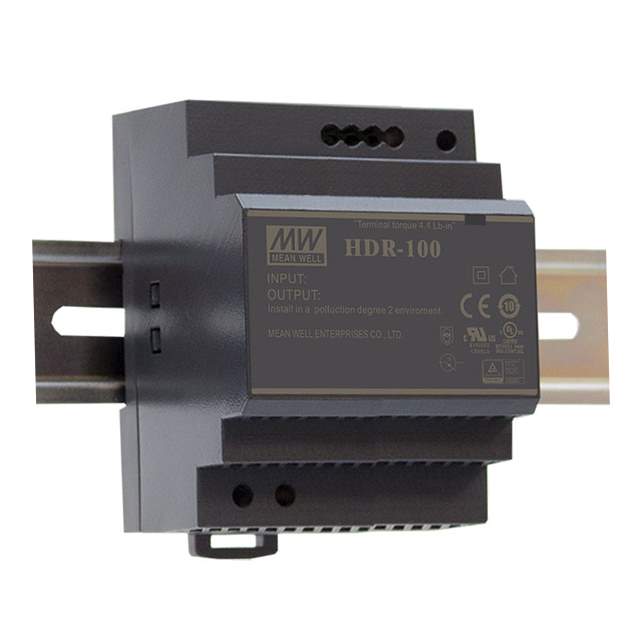

HDR-100-24 Real Image
Same model may have multiple batches, images only for reference.

HDR-100-24

Part No HDR-100-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog OEM Parts (F - I)
Description AC/DC CONVERTER 24V 92W  /
Datasheet
HDR-100-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr MEAN WELL USA Inc.
Series HDR-100 (100W)
Package Box
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 85 ~ 264 VAC
DC Voltage - Input (Min) 120V
DC Voltage - Input (Max) 370V
Voltage - Output 1 24V
Current - Output (Max) 3.83A
Power (Watts) 92W
Voltage - Isolation 4 kV
Applications ITE (Commercial)
Efficiency 90%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Dimension 2.15" L x 2.76" W x 3.54" H (54.5mm x 70.0mm x 90.0mm)
Approval Agency CB, CE, cULus, cURus, TUV
Minimum Load Required No
Base Product Number HDR-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-2233,HDR-100-24-ND
Standard Package 48
Win Source Part Number 1062438-HDR-100-24
Ultra Librarian 3D Model Ultra Librarian HDR-100-24 CAD Model

Description

The HDR-100-24 is an industrial, DIN rail power supply component manufactured by MEAN WELL USA Inc.

  • Win Source Part Number: 1062438-HDR-100-24.
  • Category: Power Supplies - External/Internal (Off-Board)>Industrial.
  • Series: HDR-100 (100W) series.
  • Package: box.
  • Standard Package: 48.
  • Features: adjustable output and a universal input feature.
  • Power: 92W.
  • Outputs: 1.
  • Maximum Current Output: 3.83A.
  • Voltage Output: 24V.
  • Alternative Part: AMED100-24SNZ.
