Same model may have multiple batches, images only for reference.

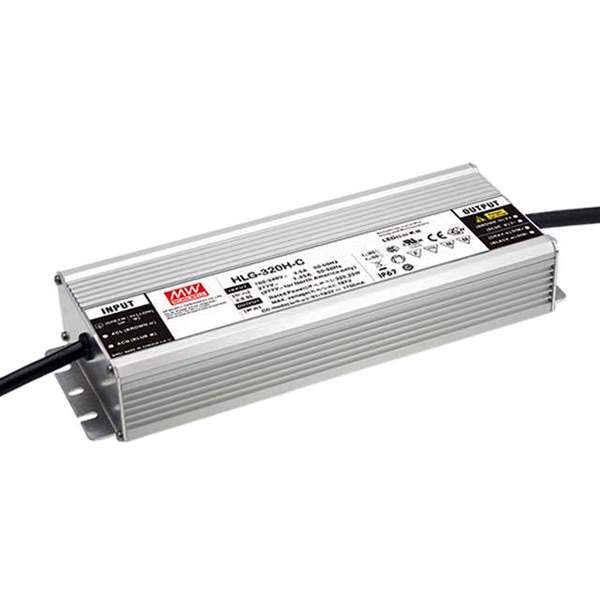

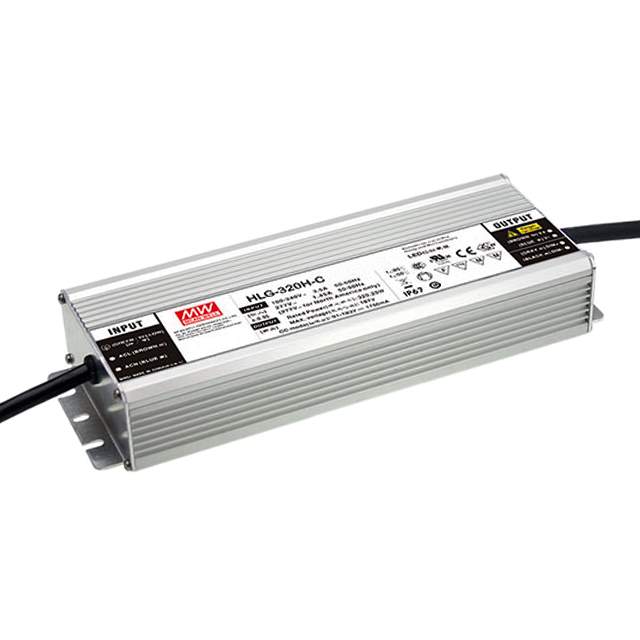

HLG-320H-C1750B Real Image
Same model may have multiple batches, images only for reference.

HLG-320H-C1750B

Part No HLG-320H-C1750B
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC AC/DC 91-183V 1.75A / 1.75A 91 ~ 183V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
HLG-320H-C1750B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series HLG-320H-C (320W)
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 91 ~ 183V
Current - Output (Max) 1.75A
Power (Watts) 320 W
Voltage - Isolation 3.75 kV
Dimming Analog, PWM
Features OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Termination Style Wire Leads
Dimension 8.87" L x 3.54" W x 1.72" H (225.2mm x 90.0mm x 43.8mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Type Chassis Mount
Base Product Number HLG-320H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names HLG-320H-C1750B-ND,1866-2502
Standard Package 8
Win Source Part Number 1061835-HLG-320H-C1750B
Ultra Librarian 3D Model Ultra Librarian HLG-320H-C1750B CAD Model

Description

The MEAN WELL USA Inc. HLG-320H-C1750B-ND is a high-quality electronic component that is perfect for power supplies.

  • Power Output: 320W
  • Voltage Output: 91 ~ 183V
  • Type: Constant Current
  • Features: OTP, OVP, and SCP
  • Package: box
  • Standard Package: 8 components
  • IP Rating: IP67
  • Voltage Isolation: 3.75kV
  • Output: Single Output
  • Maximum Output Current: 1.75A
  • Voltage Input: 90VAC to 305VAC
  • Dimming: Analog and PWM
  • Efficiency: 94%
  • Mounting: Chassis Mounted
  • Operating Temperature: -40°C to 85°C
  • Win Source Part Number: 1061835-HLG-320H-C1750B
