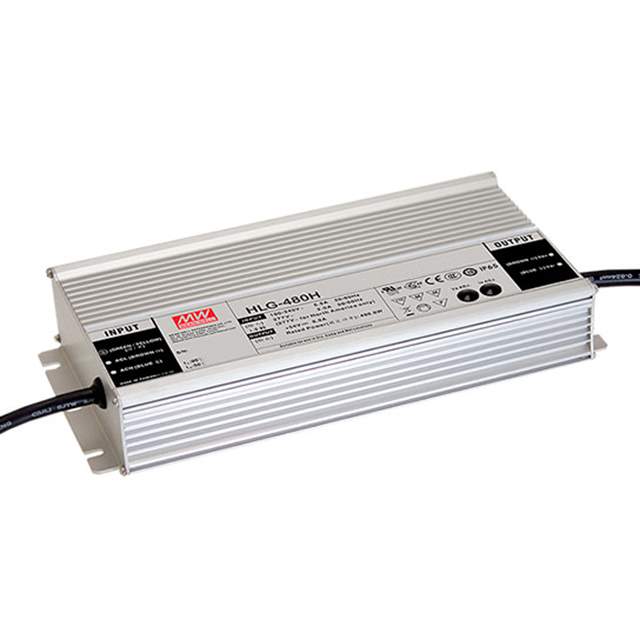

HLG-480H-48B Real Image
Same model may have multiple batches, images only for reference.

HLG-480H-48B

Part No HLG-480H-48B
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRVR CC/CV AC/DC 24-48V 10A / 10A 24 ~ 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
HLG-480H-48B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series HLG-480H (480W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 24 ~ 48V
Current - Output (Max) 10A
Power (Watts) 480 W
Voltage - Isolation 3.75 kV
Dimming Analog, PWM
Features OCP, OTP, OVP, SCP
Ratings IP67
Temperature Range - Operating -40°C ~ 90°C
Efficiency 95%
Termination Style Wire Leads
Dimension 9.26" L x 4.92" W x 1.72" H (235.2mm x 125.0mm x 43.8mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Type Chassis Mount
Base Product Number HLG-480H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9530
Other Names 1866-2552,HLG-480H-48B-ND
Standard Package 4
Win Source Part Number 1168945-HLG-480H-48B
Ultra Librarian 3D Model Ultra Librarian HLG-480H-48B CAD Model

Description

The HLG-480H-48B is a power supply designed for use in various LED driver applications manufactured by MEAN WELL USA Inc.

  • Win Source Part Number: 1168945-HLG-480H-48B
  • Power Rating: 480W
  • Voltage Output: 24 ~ 48V
  • Type: Constant Current, Voltage
  • Termination Style: Wire Lead
  • Protection Features: Overcurrent, Over Temperature, Over Voltage, and Short Circuit
  • Efficiency: 95%
  • Mounting: Chassis
