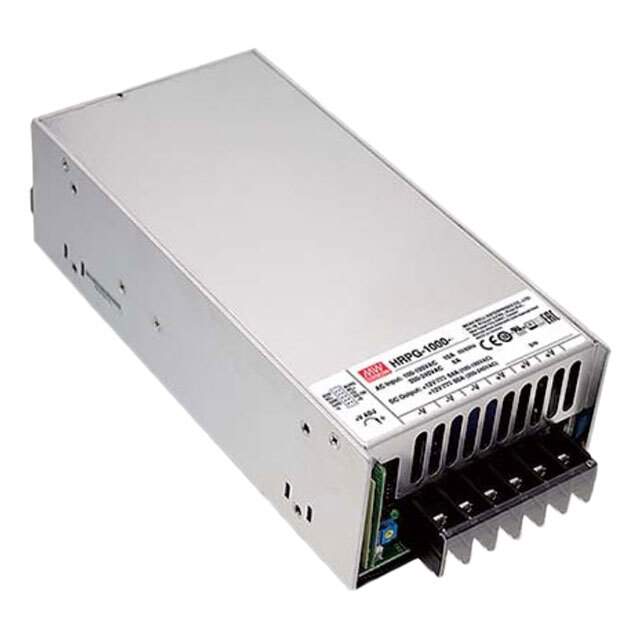

HRPG-1000-24 Real Image
Same model may have multiple batches, images only for reference.

HRPG-1000-24

Part No HRPG-1000-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 1008W / Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Datasheet
HRPG-1000-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series HRPG-1000 (1000W)
Package Bulk
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 24V
Current - Output 1 42 A
Power (Watts) 1008W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 93%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type Chassis Mount
Dimension 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm)
Approval Agency CB, CE, cURus, EAC, TUV
Base Product Number HRPG-1000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9540
Other Names 1866-5566
Standard Package 8
Win Source Part Number 1088901-HRPG-1000-24
Ultra Librarian 3D Model Ultra Librarian HRPG-1000-24 CAD Model

Description

The HRPG-1000-24 from MEAN WELL USA Inc. is a 1008W enclosed AC/DC converter with universal input, adjustable output, PFC, remote on/off, and remote sense features. It has a single output of 24V with a current output of 42A.

  • Voltage Isolation: 3kV
  • Efficiency: 93%
  • Application: ITE (Commercial)
  • Temperature Range: -40°C to 70°C with derating
  • Package: Chassis Mount
  • Dimensions: 8.58 inches (218.0mm) in length, 4.13 inches (105.0mm) in width, and 2.50 inches (63.5mm) in height
  • Alternative: RACM1200-24SAV/ENC
