Same model may have multiple batches, images only for reference.

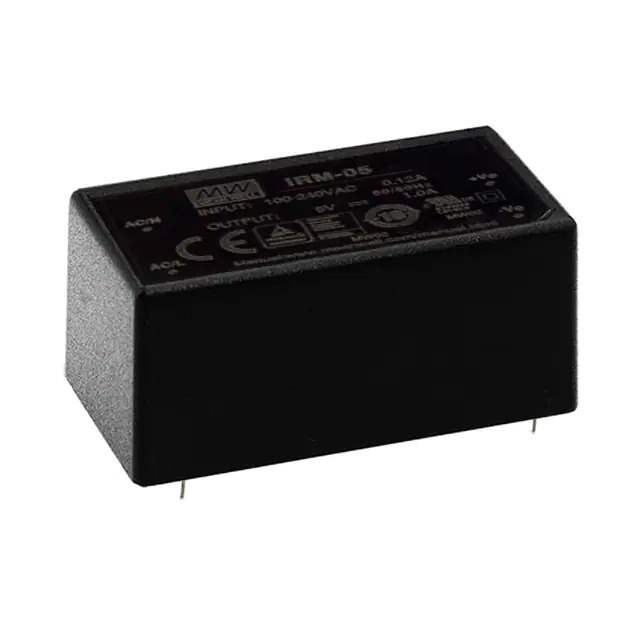

IRM-05-3.3 Real Image
Same model may have multiple batches, images only for reference.

IRM-05-3.3

Part No IRM-05-3.3
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 3.3V 4.1W / Enclosed AC DC Converters 1 Output 3.3V 1.25A 85 ~ 305 VAC, 120 ~ 430 VDC Input
Datasheet
IRM-05-3.3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series IRM-05 (5W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 120 ~ 430 VDC
Voltage - Output 1 3.3V
Current - Output (Max) 1.25A
Power (Watts) 4.1 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Efficiency 68%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm)
Approval Agency CB, CE, cURus, EAC, TUV
Line Regulation ±0.3%
Load Regulation ±0.5%
Base Product Number IRM-05
Standard Package 270 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 847563-IRM-05-3.3
Ultra Librarian 3D Model Ultra Librarian IRM-05-3.3 CAD Model

Description

The IRM-05-3.3 is a 5W enclosed AC/DC converter from Mean Well Enterprises Co., Ltd.

  • Features: Universal input
  • Size: 1.80" L x 1.00" W x 0.85" H
  • Mounting: Through-Hole
  • Input Voltage: 85 ~ 305 VAC, 120 ~ 430 VDC
  • Output Voltage: 3.3V
  • Output Current: 1.25A (max)
  • Efficiency: 68%
  • Line Regulation: ±0.3%
  • Load Regulation: ±0.5%
  • Operating Temperature: -30°C to 70°C
  • Application: Commercial
  • Approvals: CB, CE, cURus, EAC, TUV
  • Standard Package: 270 pieces
