Same model may have multiple batches, images only for reference.

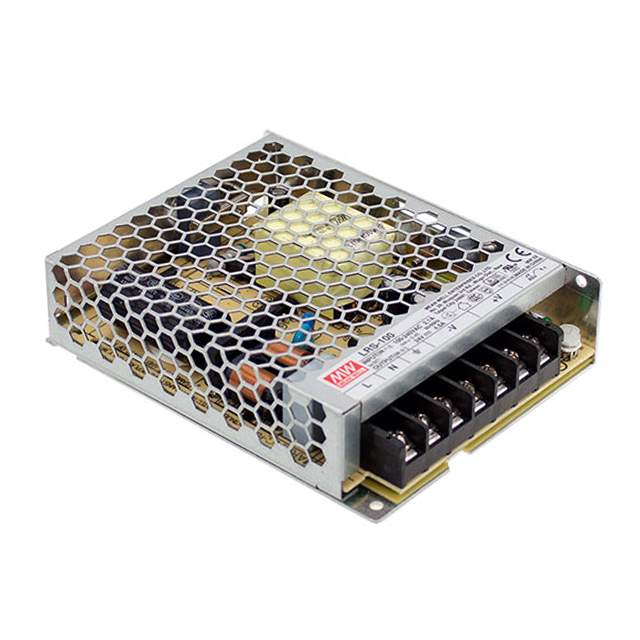

LRS-100-24 Real Image
Same model may have multiple batches, images only for reference.

LRS-100-24

Part No LRS-100-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 108W  /  Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 373 VDC Input
Datasheet
LRS-100-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series LRS-100 (100W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 373 VDC
Voltage - Output 1 24V
Current - Output 1 4.5 A
Power (Watts) 108W
Applications Household Appliances, ITE (Commercial)
Voltage - Isolation 4 kV
Efficiency 90%
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Dimension 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm)
Approval Agency CB, CCC, CE, cURus, TUV
Minimum Load Required No
Base Product Number LRS-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 1866-3314,LRS-100-24-ND
Standard Package 40
Win Source Part Number 1012159-LRS-100-24
Ultra Librarian 3D Model Ultra Librarian LRS-100-24 CAD Model

Description

The LRS-100-24 is an enclosed type AC DC converter designed and manufactured by MEAN WELL USA Inc.

  • Series: LRS-100 (100W)
  • Package: Box
  • Output Adjustment: Yes
  • Input: Universal
  • Standard Package: 40
  • Power (Watts): 108W
  • Voltage - Output: 24V
  • Operating Temperature: -30°C ~ 70°C
  • ECCN: EAR99
  • REACH: Unaffected
