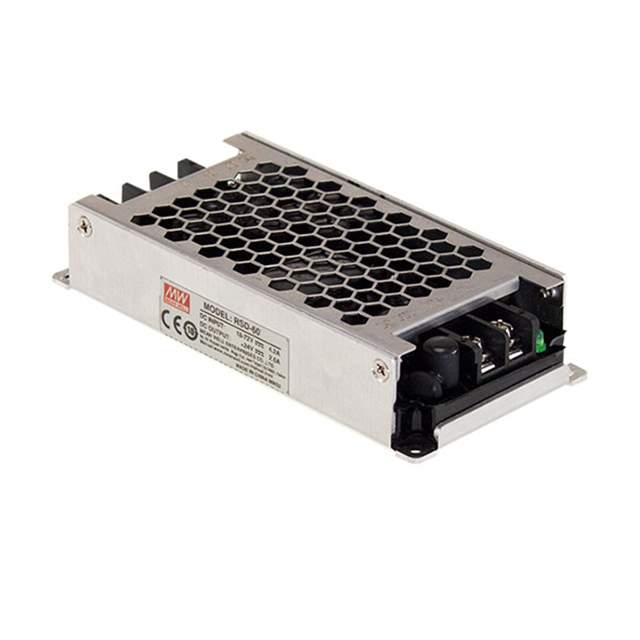

RSD-60H-5 Real Image
Same model may have multiple batches, images only for reference.

RSD-60H-5

Part No RSD-60H-5
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 5V 60W / Enclosed DC DC Converter 1 Output 5V 12A 160V Input
Datasheet
RSD-60H-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - DC DC Converters
Mfr MEAN WELL USA Inc.
Series RSD-60 (60W)
Package Box
Type Enclosed
Voltage - Input (Min) 40V
Voltage - Input (Max) 160V
Number of Outputs 1
Voltage - Output 1 5V
Current - Output (Max) 12A
Power (Watts) 60W
Voltage - Isolation 4 kV
Applications ITE (Commercial) , Railway
Efficiency 89%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Mounting Type Chassis Mount
Size / Dimension 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm)
Approval Agency CE
Base Product Number RSD-60
Standard Package 48
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351183-RSD-60H-5
Ultra Librarian 3D Model Ultra Librarian RSD-60H-5 CAD Model

Description

The MEAN WELL USA Inc. RSD-60H-5 is a 60W enclosed DC-DC converter designed for use in ITE (Commercial) and Railway applications.

  • Applications: ITE (Commercial) and Railway
  • Efficiency: 89%
  • Mounting: Chassis Mountable
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • Standard Package: 48 units

You May Also Be Interested in

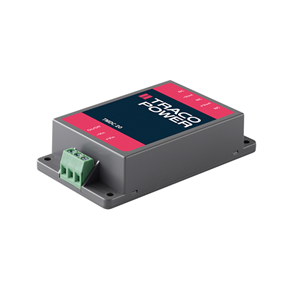

TMDC 20-4812 Real Image
TMDC 20-4812
Traco Power
DC/DC CONVERTER 12V 20W / Enclosed DC DC Converter 1 Output 12V 1.67A 75V Input
Need more? Email Us
110RCM150-24DMQF Real Image
110RCM150-24DMQF
Bel Power Solutions
DC/DC CONVERTER 24V 150W / Enclosed, Conformal Coated DC DC Converter 1 Output 24V 6.25A 137.5V Input
Need more? Email Us
RSD-60H-5 Real Image
RSD-60H-5
Mean Well Enterprises Co., Ltd.
DC/DC CONVERTER 5V 60W / Enclosed DC DC Converter 1 Output 5V 12A 160V Input
Need more? Email Us
VXO7805-500 CUI Inc.
VXO7805-500
CUI Inc.
DC DC CONVERTER 5V OR -5V 2.5W
Need more? Email Us
TMDC 60-4812 Real Image
TMDC 60-4812
Traco Power
DC/DC CONVERTER 12V 60W / Enclosed DC DC Converter 1 Output 12V 5A 75V Input
Need more? Email Us
TMDC 60-4811 Real Image
TMDC 60-4811
Traco Power
DC/DC CONVERTER 5.1V 61W / Enclosed DC DC Converter 1 Output 5.1V 12A 75V Input
Need more? Email Us

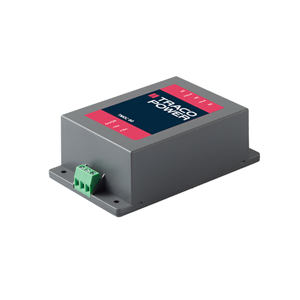

TMDC 60-2418 Real Image
