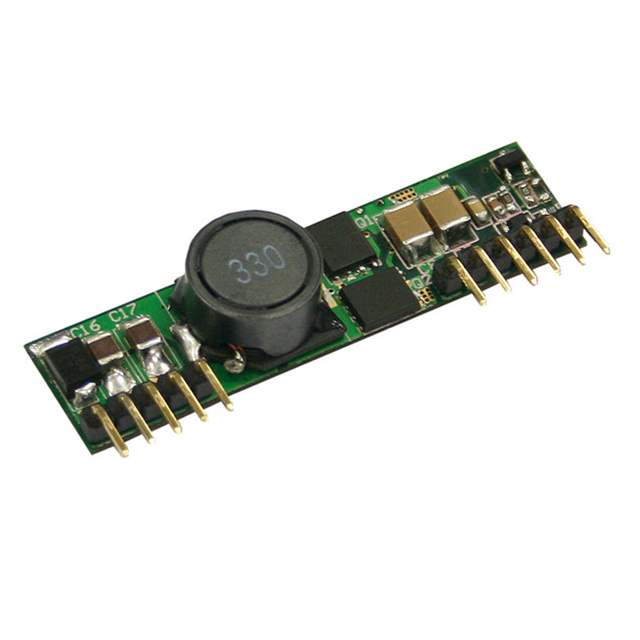

Same model may have multiple batches, images only for reference.

NID30S24-15

Name: NID30S24-15
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1029357
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NID30S24-15
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 30W / Non-Isolated PoL Module DC DC Converter 1 Output 15V 2A 20V - 53V Input
Datasheet	NID30S24-15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	NID30 (30W)
Package	Box
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	20V
Voltage - Input (Max)	53V
Voltage - Output 1	15V
Current - Output (Max)	2A
Power (Watts)	30 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-25°C ~ 65°C (With Derating)
Efficiency	96%
Mounting Type	Through Hole
Package / Case	11-SIP Module
Dimension	2.00" L x 0.42" W x 0.51" H (50.8mm x 10.7mm x 13.0mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1866-5341,NID30S24-15-ND
Standard Package	1
Win Source Part Number	1029357-NID30S24-15
Ultra Librarian 3D Model	Ultra Librarian NID30S24-15 CAD Model

Alternative Products

Description

The MEAN WELL USA Inc. NID30S24-15 is a non-isolated point-of-load (PoL) DC-DC converter that is designed for use in commercial information technology equipment.

Maximum Output Power: 30 W
Maximum Output Current: 2 A
Features: Remote on/off, over-current protection, over-voltage protection, and short-circuit protection
RoHS Compliant: Yes
Manufacturer: MEAN WELL USA Inc.
