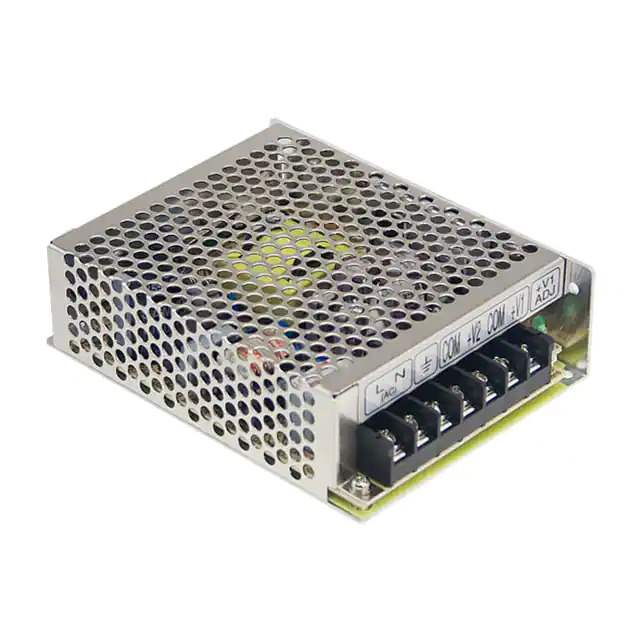

RD-50B Real Image
Same model may have multiple batches, images only for reference.

RD-50B

Part No RD-50B
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 24V 54W / Enclosed AC DC Converters 2 Output 5V 24V 88 ~ 264 VAC, 125 ~ 373 VDC Input
Datasheet
RD-50B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series RD-50 (50W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 2
Voltage - Input 88 ~ 264 VAC, 125 ~ 373 VDC
Voltage - Output 1 5V
Voltage - Output 2 24V
Current - Output 1 4 A
Current - Output 2 1.4 A
Power (Watts) 54W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 80%
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required Yes
Base Product Number RD-50
Standard Package 45 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 847171-RD-50B
Ultra Librarian 3D Model Ultra Librarian RD-50B CAD Model

Description

The RD-50B is a high-quality power supply converter designed for various applications in the commercial sector. RD-50B.

  • Power Output: 54W
  • Type: Enclosed
  • Feature: Adjustable Output, Universal Input
  • Voltage Input: 88VAC to 264VAC, 125VDC to 373VDC
  • Outputs: Two Outputs
  • Output 1 Voltage: 5V
  • Output 2 Voltage: 24V
  • Voltage Isolation: 3 kV
  • Size: 3.90" L x 3.82" W x 1.42" H
  • Mounting: Chassis
  • Operating Temperature: -25°C to 70°C
  • Efficiency: 80%
  • Approvals: CB, CE, cURus, and TUV
