Same model may have multiple batches, images only for reference.

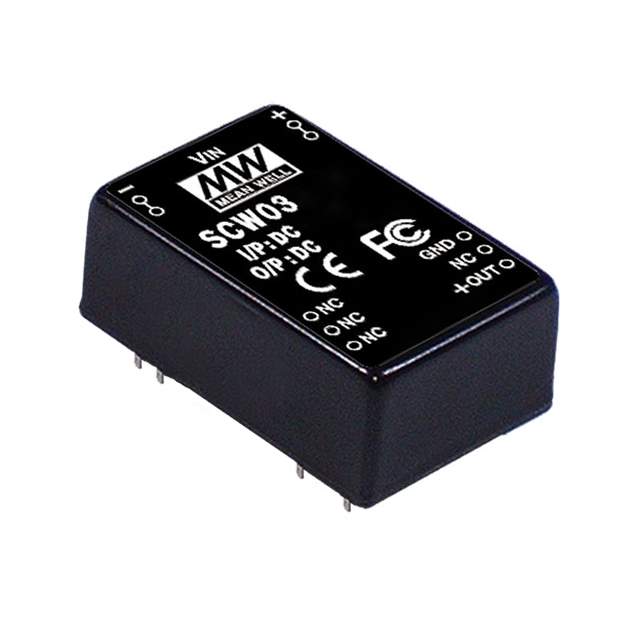

SCW03A-12 Real Image
Same model may have multiple batches, images only for reference.

SCW03A-12

Part No SCW03A-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 3W / 3W DC-DC Regulated Single Output Converter
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MEAN WELL USA Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Maximum Input Voltage 18V
Voltage - Output 1 12V
Current - Output (Maximum) 250mA
Power (Watts) 3W
Voltage - Isolation 1000V
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 71°C (With Derating)
Efficiency 80%
Mounting Style Through Hole
Manufacturer Package 24-DIP Module, 8 Leads
Dimension 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813719-SCW03A-12
Ultra Librarian 3D Model Ultra Librarian SCW03A-12 CAD Model

Description

The SCW03A-12 from MEAN WELL USA Inc is an isolated module that comes in a tube format. MEAN WELL USA Inc.

  • Mounting Style: Through Hole
  • Features: OCP, SCP
  • Applications: ITE (Commercial)
  • Power: 3W
  • Voltage Isolation: 1000V
  • Outputs: 1
  • Input Voltage (Min): 9V
  • Output Voltage 1: 12V
  • Efficiency: 80%
  • Maximum Input Voltage: 18V
  • Package: 24-DIP module, 8 leads
  • Current - Output (Max): 250mA
  • MSL Level: 1 (unlimited)
