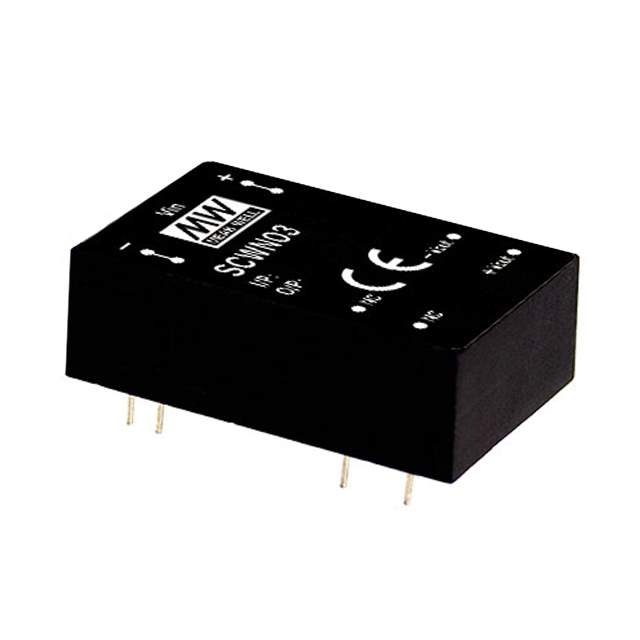

Same model may have multiple batches, images only for reference.

SCWN03A-03

Name: SCWN03A-03
Brand: Mean Well Enterprises Co., Ltd.
SKU: 961167
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SCWN03A-03
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 1.8W / Isolated Module DC DC Converter 1 Output 3.3V 600mA 9V - 18V Input
Datasheet	SCWN03A-03 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	SCWN03 (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	3.3V
Current - Output (Max)	600mA
Power (Watts)	1.8 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	78%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	SCWN03
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	SCWN03A-03-ND,1866-4380
Standard Package	600
Win Source Part Number	961167-SCWN03A-03
Ultra Librarian 3D Model	Ultra Librarian SCWN03A-03 CAD Model

Alternative Products

Description

The MEAN WELL USA Inc. SCWN03A-03 is an isolated module DC-DC converter from MEAN WELL USA Inc.

Category: Power Supplies - Board Mount
Series: SCWN03 (3W)
Features: OCP, SCP, UVLO
Packaging: Tube
Applications: ITE (Commercial)
Standard Package: 600
Power: 1.8 W
Voltage Isolation: 3 kV
Output: Single
Maximum Output Current: 600mA
Input Voltage: 9V to 18V
Output Voltage: 3.3V
Efficiency: 78 percent
Package: 24-DIP Module, 8 Leads
Temperature Range: -40°C to 90°C (With Derating)
HTSUS: 8504.40.9580
