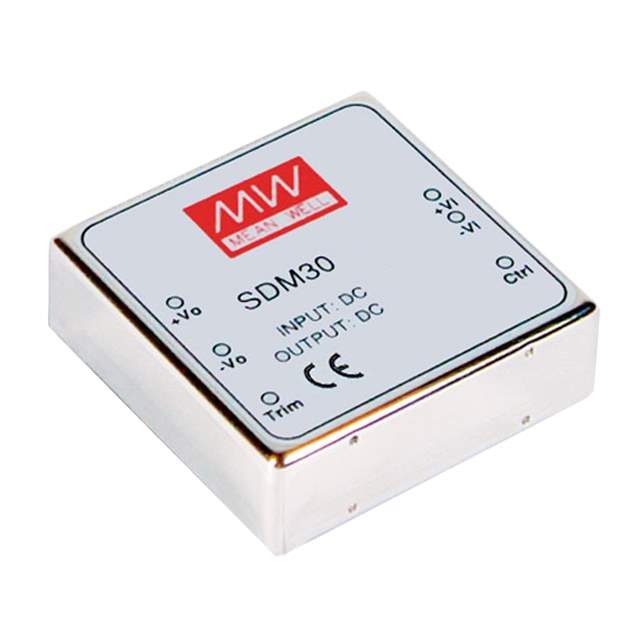

Same model may have multiple batches, images only for reference.

SDM30-12S5

Name: SDM30-12S5
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1008876
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDM30-12S5
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 25W / Isolated Module DC DC Converter 1 Output 5V 5A 9.2V - 18V Input
Datasheet	SDM30-12S5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	SDM30 (30W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9.2V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	5A
Power (Watts)	25 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-25°C ~ 85°C (With Derating)
Efficiency	77%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Dimension	2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm)
Base Product Number	SDM30
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	SDM30-12S5-ND,1866-4448
Standard Package	150
Win Source Part Number	1008876-SDM30-12S5
Ultra Librarian 3D Model	Ultra Librarian SDM30-12S5 CAD Model

Alternative Products

Description

The SDM30-12S5 is a 30W isolated module DC-DC converter designed for use in ITE (Commercial) applications.

Application: ITE (Commercial)
Features: Remote On/Off, OCP, OVP, and SCP
Power: 25W
Voltage - Isolation: 1 kV
Number of Outputs: Single
Output Current: 5A (Max)
Voltage - Input: 9.2V to 18V
Efficiency: 77%
Mounting Type: Through Hole
Packaging: Box
Standard Package: 150
Operating Temperature: -25°C to 85°C (With Derating)
Dimensions: 2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm)
ECCN: EAR99
