Same model may have multiple batches, images only for reference.

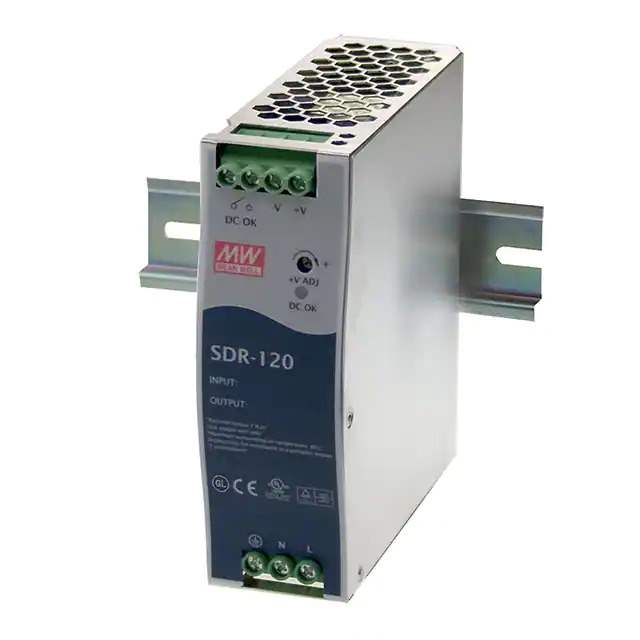

SDR-120-24 Real Image
Same model may have multiple batches, images only for reference.

SDR-120-24

Part No SDR-120-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC DIN RAIL SUPPLY 24V 120W
Datasheet
SDR-120-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - Industrial, DIN Rail Power Supplies
Mfr Mean Well Enterprises Co., Ltd.
Series SDR-120 (120W)
Package Box
Product Status Active
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 88 ~ 264 VAC
DC Voltage - Input (Min) 124V
DC Voltage - Input (Max) 370V
Voltage - Output 1 24V
Current - Output (Max) 5A
Power (Watts) 120W
Voltage - Isolation 3 kV
Applications Industrial, ITE (Commercial)
Efficiency 91%
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Size / Dimension 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required No
Base Product Number SDR-120
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 846860-SDR-120-24
Ultra Librarian 3D Model Ultra Librarian SDR-120-24 CAD Model

Description

The SDR-120-24 is a 120W industrial DIN rail power supply from the SDR-120 series.

  • Features: Adjustable Output, Power Factor Correction (PFC), Universal Input
  • Applications: Industrial and ITE (Commercial)
  • Voltage Output: 24V
  • Maximum Output Current: 5A
  • Package: Compact Box
  • Dimensions: 4.47" L x 1.57" W x 4.93" H
  • Efficiency: 91%
  • Operating Temperature: -25°C to 70°C (with derating)
  • Certifications: CB, CE, cURus, TUV
