Same model may have multiple batches, images only for reference.

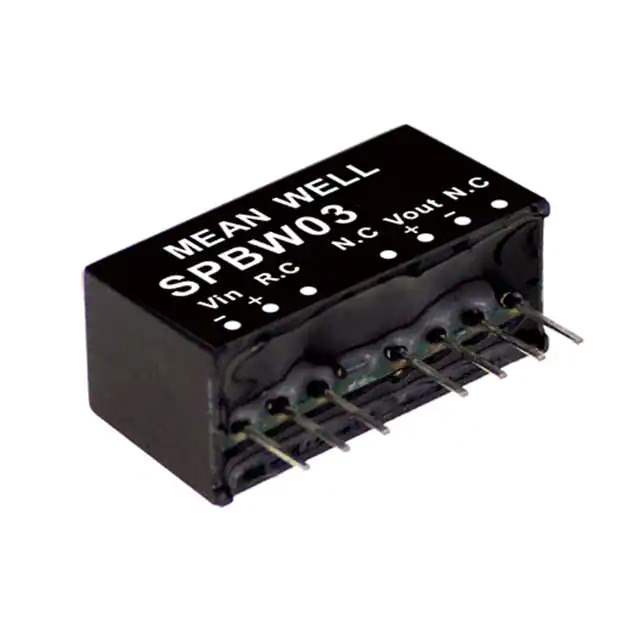

SPBW03F-05 Real Image
Same model may have multiple batches, images only for reference.

SPBW03F-05

Part No SPBW03F-05
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
Datasheet
SPBW03F-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series SPBW03 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features Enable, Active High
Base Product Number SPBW03
Standard Package 14 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847431-SPBW03F-05
Ultra Librarian 3D Model Ultra Librarian SPBW03F-05 CAD Model

Description

The Mean Well SPBW03F-05 is a 3W power supply module designed for board mount applications.

  • Features: Remote On/Off, Over Current Protection (OCP), Short Circuit Protection (SCP), Under Voltage Lockout (UVLO)
  • Package: Tube
  • Pieces Per Package: 14
  • Dimensions: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
  • Application: ITE (Commercial)
  • Power Output: 3W
  • Efficiency: 81%
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 600mA
  • Input Voltage: 9V to 36V
  • Output Voltage: 5V
  • Mounting Type: Through Hole
  • Package Type: 8-SIP Module, 7 Leads
