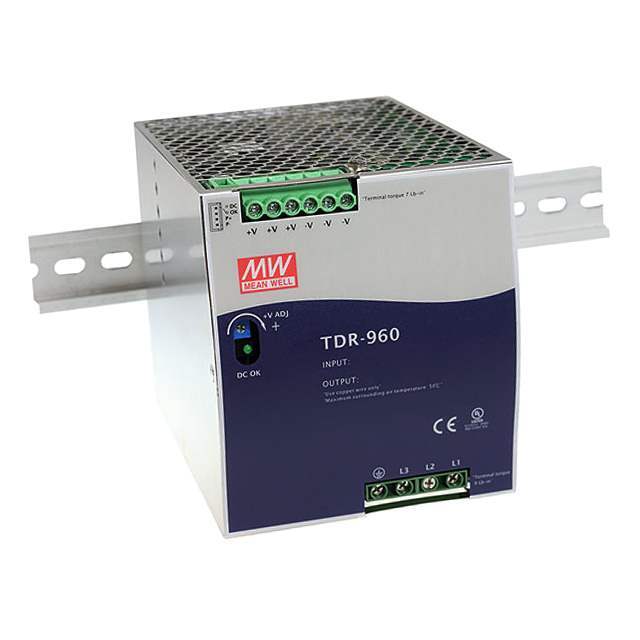

TDR-960-24 MEAN WELL USA Inc.
Same model may have multiple batches, images only for reference.

TDR-960-24

Part No TDR-960-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC DIN RAIL SUPPLY 24V 960W
Datasheet
TDR-960-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MEAN WELL USA Inc.
Category Power Supplies - External/Internal (Off-Board) > Industrial, DIN Rail Power Supplies
Packaging Box
Part Status Active
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 340 ~ 550 VAC (3 Phase)
DC Voltage - Input (Min) 480V
DC Voltage - Input (Max) 780V
Voltage - Output 1 24V
Ultra Librarian 3D Model Ultra Librarian TDR-960-24 CAD Model

Description

Features

  • Three- Phase 340一550VAC wide range input
    (Dual phase operation possible)
  • Width only 110mm
  • Built-in active PFC function compliance to BS EN/
    EN61000-3-2
  • High efficiency 94.5% and low power dissipation
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5or 15
  • UL 508(industrial control equipment)approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • Current sharing up to 3840W(3+1)
  • Built-in DC OK relay contact
