G4802CG
Same model may have multiple batches, images only for reference.

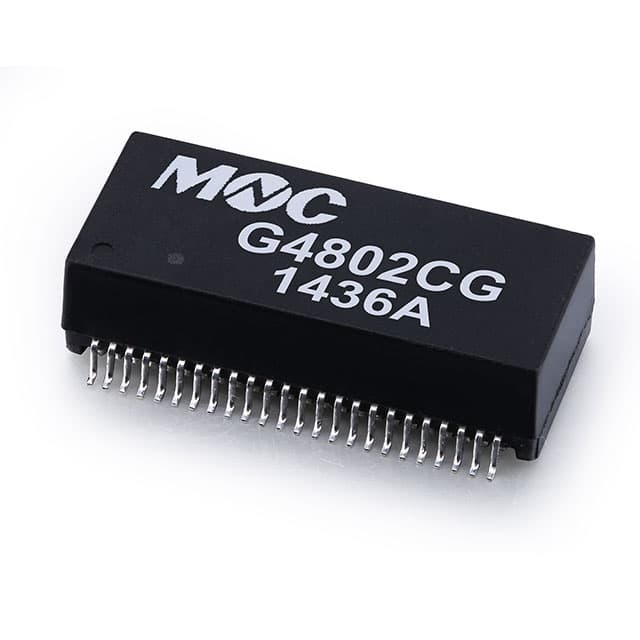

G4802CG

Part No G4802CG
Manufacturer Mentech Technology USA Inc.
Catalog Pulse Transformers
Description DUAL LAN XFMR 1000 BASE-T / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
Datasheet
G4802CG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Mentech Technology USA Inc.
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 1.114" L x 0.500" W (28.30mm x 12.70mm)
Height - Seated (Max) 0.295" (7.50mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 5 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.9000
Win Source Part Number 872537-G4802CG
Ultra Librarian 3D Model Ultra Librarian G4802CG CAD Model

Description

The G4802CG is a pulse transformer designed for surface mount applications. Bold the product name (e.g., BAV99S,135 → G4802CG) and manufacturer (e.g., Nexperia USA Inc. → Mentech Technology USA Inc.).

  • Mounting Type: Surface Mount
  • Application: LAN 10/100/1000 Base-T
  • Inductance: 350µH
  • Package Size: 1.114" L x 0.500" W (28.30mm x 12.70mm)
  • Height Seated: 0.295" (7.50mm)
  • Operating Temperature: 0°C to 70°C
  • Packaging: Tape and Reel
  • Standard Package: 5 pcs
  • Application: Suitable for high-speed data transmission and networking applications
