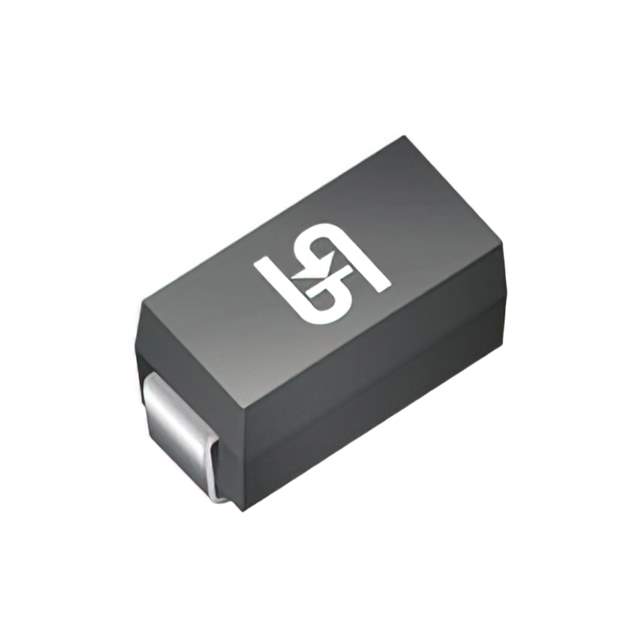

SMBJ20 Real Image
Same model may have multiple batches, images only for reference.

SMBJ20

Part No SMBJ20
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMBJ20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMBJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 20V
Voltage - Breakdown (Min) 22.2V
Voltage - Clamping (Max) @ Ipp 35.8V
Current - Peak Pulse (10/1000µs) 16.76A
Power - Peak Pulse 600W
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AA (SMB)
Other Names 2997-SMBJ20TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299942-SMBJ20
Ultra Librarian 3D Model Ultra Librarian SMBJ20 CAD Model

Description

The Meritek SMBJ20 is a Zener type TVS diode that is surface mountable.

  • Voltage Reverse Standoff: 20V
  • Breakdown Voltage: 22.2V (Min)
  • Power Rating: 600W
  • Clamping Voltage: 35.8V @ Ipp
  • Current Peak Pulse (10/1000µs): 16.76A
  • Unidirectional Channels: 1
  • Package: Tape & reel (TR)
  • Standard Packages: 20
  • Application: General purpose
  • Package: DO-214AA (SMB)
  • Operating Temperature: -55°C ~ 150°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
