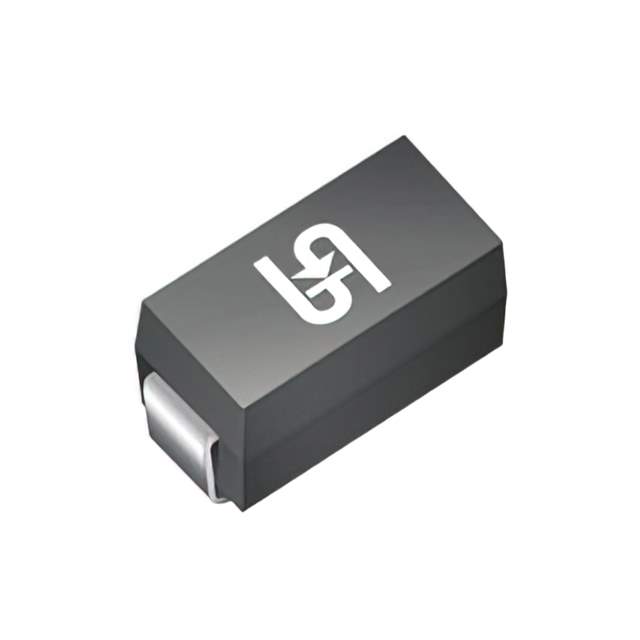

SMBJ8.5 Real Image
Same model may have multiple batches, images only for reference.

SMBJ8.5

Part No SMBJ8.5
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMBJ8.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMBJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8.5V
Voltage - Breakdown (Min) 9.44V
Voltage - Clamping (Max) @ Ipp 15.9V
Current - Peak Pulse (10/1000µs) 37.74A
Power - Peak Pulse 600W
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AA (SMB)
Other Names 2997-SMBJ8.5TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299936-SMBJ8.5
Ultra Librarian 3D Model Ultra Librarian SMBJ8.5 CAD Model

Description

The Meritek SMBJ8.5 is a TVS-diode that is used in various applications.

  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 8.5V
  • Voltage - Breakdown (Min): 9.44V
  • Voltage - Clamping (Max) @ Ipp: 15.9V
  • Power - Peak Pulse: 600W
  • Current - Peak Pulse (10/1000µs): 37.74A
  • Package/Case: DO-214AA (SMB)
  • Temperature Range: -55°C ~ 150°C
