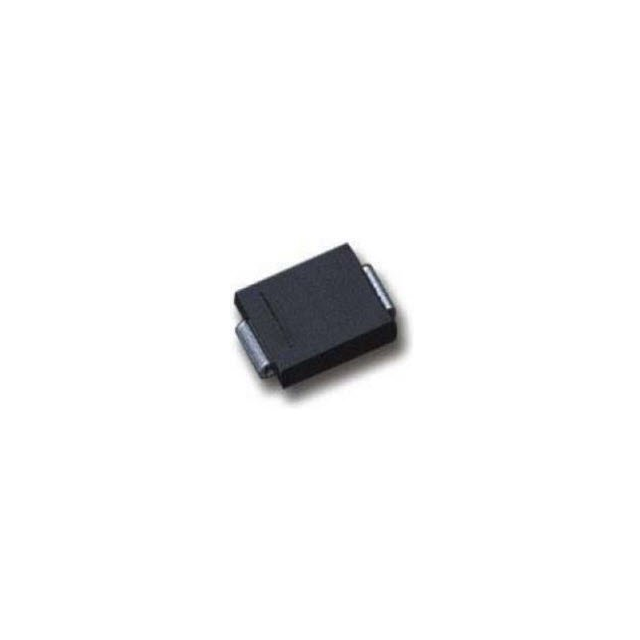

SMDJ36 Real Image
Same model may have multiple batches, images only for reference.

SMDJ36

Part No SMDJ36
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMDJ36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMDJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 64.3V
Current - Peak Pulse (10/1000µs) 46.66A
Power - Peak Pulse 3000W (3kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMDJ36TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299885-SMDJ36
Ultra Librarian 3D Model Ultra Librarian SMDJ36 CAD Model

Description

The SMDJ36 from Meritek is a Zener type TVS diode designed for general-purpose circuit protection.

  • Package: DO-214AB (SMC)
  • Voltage Reverse Standoff: 36V
  • Voltage Breakdown: 40V
  • Voltage Clamping: 64.3V @ Ipp
  • Power Peak Pulse: 3000W
  • Capacitance: 0
  • Maximum Current Peak Pulse: 46.66A @ 10/1000 microseconds
  • Mounting: Printed circuit board
