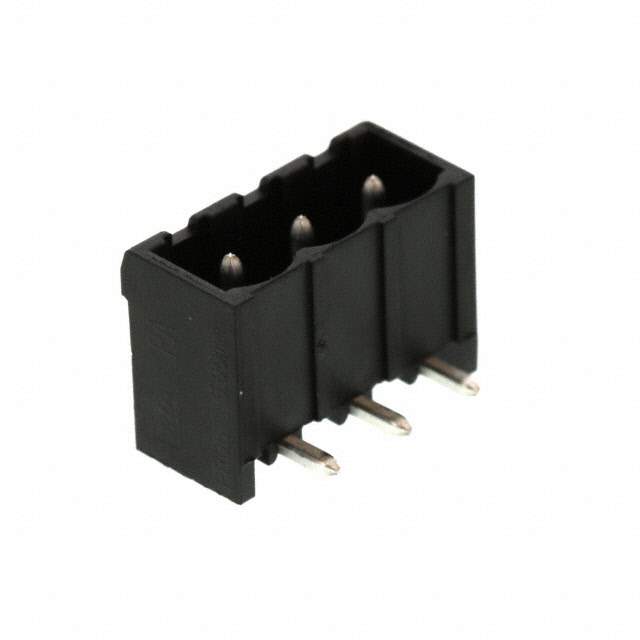

Same model may have multiple batches, images only for reference.

31176103

Name: 31176103
Brand: METZ CONNECT USA Inc.
SKU: 855609
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	31176103
Manufacturer	METZ CONNECT USA Inc.
Catalog	Headers, Plugs and Sockets
Description	SHROUDED HEADER, RIGHT ANGLE, TH
Datasheet	31176103 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	METZ CONNECT USA Inc.
Package	Bulk
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Type	Through Hole
Current - UL	15 A
Voltage - UL	300 V
Color	Black
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Housing Material	Polyamide (PA6T), Nylon 6T
Contact Tail Length	0.136" (3.45mm)
Insulation Height	0.331" (8.40mm)
Standard Package	500 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	855609-31176103
Ultra Librarian 3D Model	Ultra Librarian 31176103 CAD Model

Alternative Products

Description

The 855609-31176103 is a header connector manufactured by METZ CONNECT USA Inc.

Connector Type: Male Pin, Shrouded Header with 4 Sides
Number of Positions: 3
Positions per Level: 3
Number of Levels: 1
Pitch: 0.197" (5.00mm)
Orientation: Right Angle (90°)
Termination Style: Solder
Current Rating (UL): 15 A
Voltage Rating: 300 V
Housing Material: Polyamide (PA6T), Nylon 6T
Flammability Rating: UL94 V-0
Package: Bulk
Standard Quantity: 500 pieces
Operating Temperature: -40°C to 105°C
HTSUS Code: 8536.69.4040
Status: Active
