The MIC24054YJL is a high-efficiency, synchronous step-down regulator from Micrel (now Microchip Technology). It is designed to provide a regulated output voltage from a higher input voltage, with high efficiency and minimal external components. This regulator is ideal for a wide range of applications where space and efficiency are critical.

Applications

• Point-of-load regulation in servers and workstations
• Powering FPGAs and microprocessors
• Portable devices
• Battery-powered applications
• Industrial control systems

Features

• Wide input voltage range: 4.5V to 26V
• Adjustable output voltage
• Up to 3A output current
• High efficiency operation
• Integrated MOSFETs
• Overcurrent and overtemperature protection

Benefits

• Provides a compact and efficient power solution
• Simplifies circuit design
• Protects the regulator and the load from damage
• Extends battery life in portable applications
• Enables high-performance power delivery

Additional Details

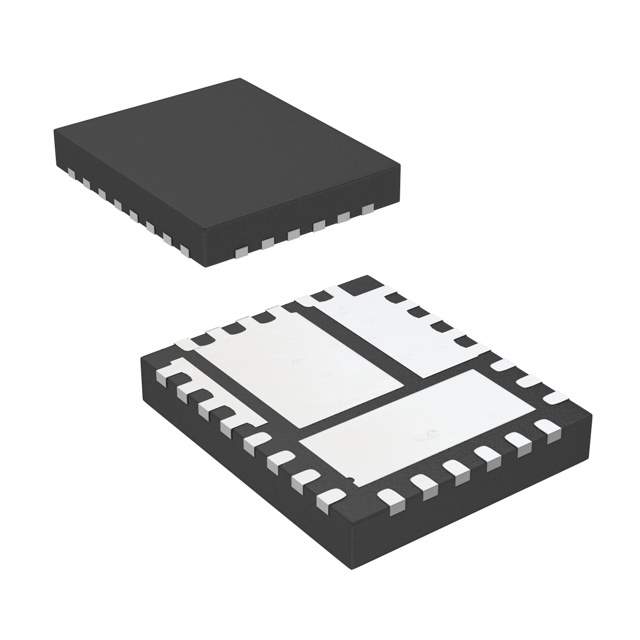

The MIC24054YJL utilizes a constant on-time (COT) control architecture for fast transient response and stable operation. It requires minimal external components, reducing the overall system cost and size. The device is available in a small J-Lead package. The MIC24054YJL is a versatile and reliable step-down regulator suitable for a wide range of applications where efficiency, size, and performance are critical.
