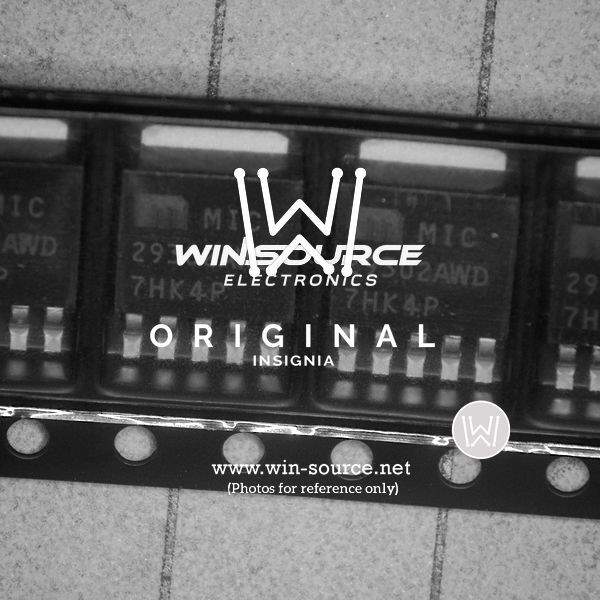

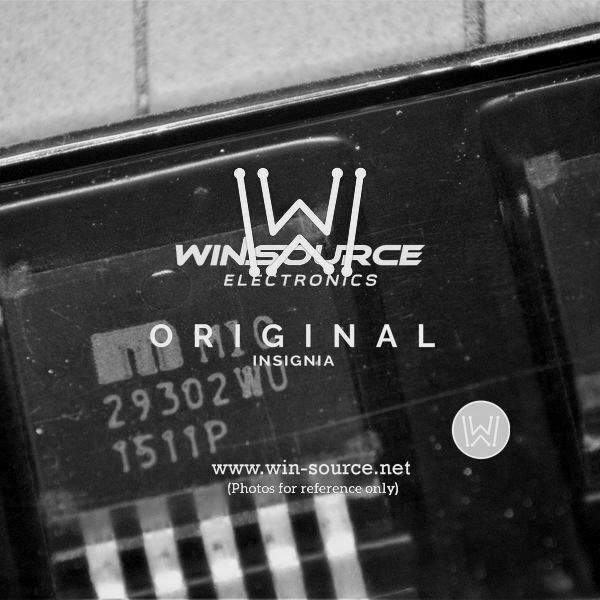

MIC29302AWD Real Image MIC29302AWD real image3186 MIC29302AWD real image3187 MIC29302AWD Real Image
Same model may have multiple batches, images only for reference.
MIC29302AWD Real Image MIC29302AWD real image3186 MIC29302AWD real image3187 MIC29302AWD Real Image
MIC29302AWD Real Image MIC29302AWD real image3186 MIC29302AWD real image3187 MIC29302AWD Real Image
Same model may have multiple batches, images only for reference.

MIC29302AWD

Part No MIC29302AWD
Manufacturer Micrel
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 3A TO252-5
Datasheet
MIC29302AWD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 1.24V
Maximum Output Voltage 15V
Dropout Voltage-Max 0.8V @ 3A
Output Current 3A
Operating Supply Current 20mA to 150mA
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.24 V to 15 V
Voltage - Dropout (Typical) 0.45V @ 3A
Mounting SMD (SMT)
Case / Package TO-252-5
Win Source Part Number 229636-MIC29302AWD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MIC29302AWD CAD Model

Description

The Microchip Technology MIC29302AWD is a positive adjustable regulator with a voltage dropout of 0.45V @ 3A.

  • Regulators: Single
  • Output Type: Adjustable voltage
  • Output Current: 3A
  • Output Voltage: 1.24V to 15V
  • Protection: Overcurrent, over-temperature, and reverse polarity
  • Operating Temperature Range: -40°C to 125°C
  • Maximum Input Voltage: 16V
  • Nominal Output Voltage: 1.24V
  • Dropout Voltage-Max: 0.8V @ 3A
  • Operating Supply Current: 20mA to 150mA
  • Supply and demand status: Limited
